SFP-LX-FL
1G · SFP · 1310nmSMF · 10km · Duplex LC
$13.00
SFP-LX-FL, Aruba SFP-LX Compatible 1000Base-LX SFP 1310nm 10km Duplex LC SMF Optical Transceiver ModuleLoading...
Sonicwall Compatible
01-SSC-9790-FL Sonicwall 01-SSC-9790 Compatible 1000Base-LX SFP 1310nm 10km Duplex LC SMF Optical Transceiver Module
- Guaranteed compatible with Sonicwall
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 1G
- Form Factor
- SFP
- Interface Type
- 1000BASE-LX
- Standard/Protocol
- IEEE 802.3 1000BASE-LX
- TX Wavelength
- 1310nm
- RX Wavelength
- 1310nm
- Cable Type
- SMF
- Reach
- 10km
- DDM
- Supported
- Connector Type
- Duplex LC (UPC)
- Power Consumption
- < 1.0 W
- Operating Temperature
- 0°C to +70°C (COM)
Overview
FluxLight's 01-SSC-9790-FL is a Sonicwall® compatible 1000Base SFP Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Sonicwall® original transceivers and are 100% compatible with other OEM and third party transceivers. The Sonicwall 01-SSC-9790-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Applications
- Gigabit Ethernet over single-mode fiber (1000BASE-LX / LX10)
- Campus and enterprise backbone links
- Building-to-building / inter-building connectivity
- Metro access and service-provider aggregation
- Gigabit uplinks between switches and routers
Features
- Up to 1.25 Gb/s data rate for Gigabit Ethernet
- Compliant with IEEE 802.3 1000BASE-LX (10 km reach per 1000BASE-LX10)
- 1310 nm FP laser transmitter and PIN photodiode receiver
- Up to 10 km over single-mode fiber (SMF)
- Duplex LC connector; hot-pluggable SFP footprint
- Extinction ratio ≥ 9 dB; 14 dB optical link budget
- Digital Diagnostics Monitoring (DDM/DOM) per SFF-8472
- SFP MSA (SFF-8074i) compliant
- AC-coupled CML data interface; single +3.3 V supply, < 1 W
- Class 1 laser safety (IEC/EN 60825-1); RoHS-compliant and lead-free
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | TOP | 0 | 70 | °C |
| Power Supply Voltage | VCC | -0.3 | 3.6 | V |
| Relative Humidity (non-condensation) | RH | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | 1 | W | |||
| Data Rate | DR | 1.25 | Gbps | ||
| Link Distance with SMF | D | 10 | km |
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Transmitter | |||||
| Center Wavelength | λC | 1260 | 1310 | 1360 | nm |
| RMS Spectral Width | λrms | 3.5 | nm | ||
| Average Launch Power | PAVG | -9 | -3 | dBm | |
| Rise/Fall Time | Tr/Tf | 260 | ps | ||
| Extinction Ratio | ER | 9 | dB | ||
| Transmitter Eye Mask | Compliant with IEEE 802.3 standard | ||||
| Receiver | |||||
| Center Wavelength | λC | 1260 | 1580 | nm | |
| Damage Threshold | THd | -1 | dBm | ||
| Receiver Sensitivity | SEN | -23 | dBm | ||
| LOS Assert | LOSA | -45 | dBm | ||
| LOS De-Assert | LOSD | -24 | dBm | ||
| LOS Hysteresis | LOSH | 1 | dB | ||
Notes:
- Class 1 Laser Safety per FDA/CDRH and EN(IEC) 60825 regulations.
- Rise/fall time unfiltered, 20–80%. Complies with the IEEE 802.3 (Gigabit Ethernet) eye mask when filtered.
- Receiver sensitivity measured with PRBS 2⁷−1 at a BER of 1×10⁻¹².

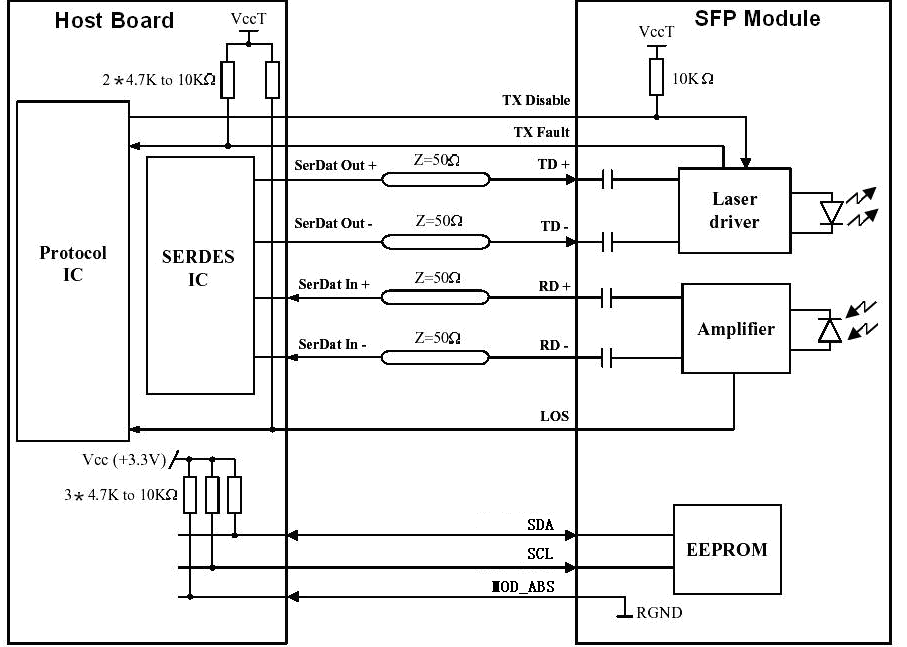

Recommended Interface Circuit
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

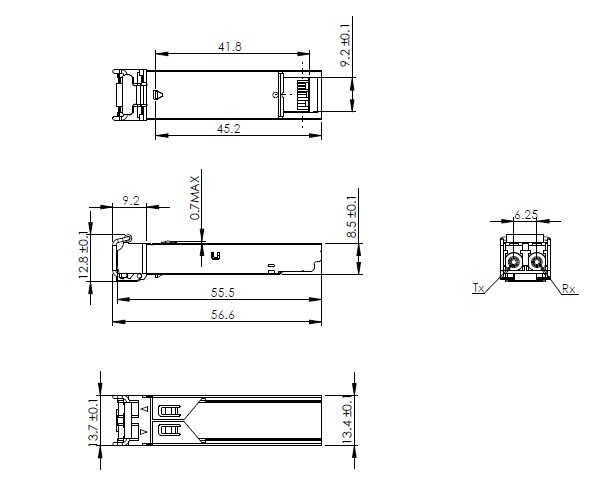

Mechanical Dimensions
Units: mm
Pin Assignment and Description
| Pin | Signal Name | Description | Plug Seq. | Notes |
|---|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 | 1 |
| 2 | TX FAULT | Transmitter Fault Indication | 3 | |
| 3 | TX DISABLE | Transmitter Disable | 3 | 2 |
| 4 | SDA | SDA Serial Data Signal | 3 | 3 |
| 5 | SCL | SCL Serial Clock Signal | 3 | 3 |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 | 3 |
| 7 | RS0 | Not Connected | 3 | 4 |
| 8 | LOS | Loss of Signal | 3 | 5 |
| 9 | RS1 | Not Connected | 3 | 4 |
| 10 | VeeR | Receiver ground | 1 | 1 |
| 11 | VeeR | Receiver ground | 1 | 1 |
| 12 | RD- | Inv. Received Data Out | 3 | 6 |
| 13 | RD+ | Received Data Out | 3 | 6 |
| 14 | VeeR | Receiver ground | 1 | 1 |
| 15 | VCCR | Receiver Power Supply | 2 | |
| 16 | VCCT | Transmitter Power Supply | 2 | |
| 17 | VeeT | Transmitter Ground | 1 | |
| 18 | TD+ | Transmit Data In | 3 | 6 |
| 19 | TD- | Inv. Transmit Data In | 3 | 6 |
| 20 | VeeT | Transmitter Ground | 1 |
Notes:
- Circuit ground is internally isolated from chassis ground.
- Laser output disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V.
- Should be pulled up with 4.7–10 kΩ on the host board to a voltage between 2.0V and 3.6V. MOD_DEF(0) pulls the line low to indicate the module is plugged in.
- Rate select is not used.
- LOS is an open-collector output. Should be pulled up with 4.7–10 kΩ on the host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.
- AC coupled.
ESD
This transceiver is specified as ESD threshold 1kV for high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
