Nokia Compatible
3HE04824AA-IND-FL
10G · SFP+ · 850nmMMF · 300m · Duplex LC
$25.99
3HE04824AA-IND-FL, Nokia 3HE04824AA-IND Compatible 10GBase-SR SFP+ 850nm 300m DOM Duplex LC MMF IND Optical Transceiver ModuleLoading...
Nokia Compatible
3HE04824AA-FL Nokia 3HE04824AA Compatible 10GBase-SR SFP+ 850nm 300m DOM Duplex LC MMF Optical Transceiver Module
- Guaranteed compatible with Nokia
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 10G
- Form Factor
- SFP+
- Interface Type
- 10GBASE-SR
- Standard/Protocol
- IEEE 802.3ae 10GBASE-SR
- TX Wavelength
- 850nm
- RX Wavelength
- 850nm
- Cable Type
- MMF
- Reach
- 300m(OM3), 400m(OM4)
- DDM
- Supported
- Connector Type
- Duplex LC (UPC)
- Power Consumption
- < 1.0 W
- Operating Temperature
- 0°C to +70°C (COM)
Overview
FluxLight's 3HE04824AA-FL is a Nokia® compatible 10GBase SFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Nokia® original transceivers and are 100% compatible with other OEM and third party transceivers. The 3HE04824AA-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Applications
- 10 Gigabit Ethernet over multimode fiber
- Data center short-reach interconnect (server-to-switch, ToR/EoR, switch-to-switch uplinks)
- 10G Fibre Channel / Storage Area Network (SAN)
Features
- Hot-pluggable SFP+ footprint with duplex LC receptacle
- Supports 9.95 to 10.52 Gbps line rates; compliant with IEEE 802.3ae 10GBASE-SR and 10G Fibre Channel
- 850 nm VCSEL laser transmitter and PIN photodiode receiver
- Up to 400m on OM4 MMF, 300m on OM3 MMF, 82m on OM2 MMF, 33m on OM1 MMF
- Optical launch power of −7.3 to −1.0 dBm; receiver sensitivity < −11.1 dBm
- Real-time Digital Diagnostic Monitoring (DDM/DOM) via 2-wire serial interface per SFF-8472
- Single +3.3V power supply with ultra-low power dissipation (< 1.0W)
- Operating case temperature: 0°C to +70°C (COM)
- SFP+ MSA (SFF-8431) compliant, RoHS-6 compliant, and Class 1 laser eye safety certified (IEC/EN 60825-1)
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | TOP | 0 | 70 | °C |
| Power Supply Voltage | VCC | -0.3 | 3.6 | V |
| Relative Humidity (non-condensation) | RH | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | 1 | W | |||
| Data Rate | DR | 10.3125 | Gbps | ||
| Link Distance with OM3 | D | 300 | m | ||
| Link Distance with OM4 | D | 400 | m |
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Transmitter | ||||||
| Center Wavelength | λc | 840 | 850 | 860 | nm | |
| Spectral Width (RMS) | Δλ | 0.45 | nm | |||
| Average Output Power | Pout | -7.3 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 3.5 | dB | |||
| Data Input Swing Differential | VIN | 180 | 700 | mV | 2 | |
| Receiver | ||||||
| Center Wavelength | λc | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | Sen | -11.1 | dBm | 3 | ||
| Receiver Overload | Psat | 0.5 | dBm | 3 | ||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS De-Assert | LOSD | -12 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 5 | dB | ||
| Data Output Swing Differential | Vout | 500 | 700 | 900 | mV | |
| LOS High Voltage | VHout | 2.0 | Vcc | V | ||
| LOS Low Voltage | VLout | 0.8 | V | |||
Notes:
- The optical power is launched into MMF.
- CML input, internally AC-coupled and terminated.
- Measured with a PRBS 2³¹−1 test pattern @10312Mbps, BER ≤1×10⁻¹².

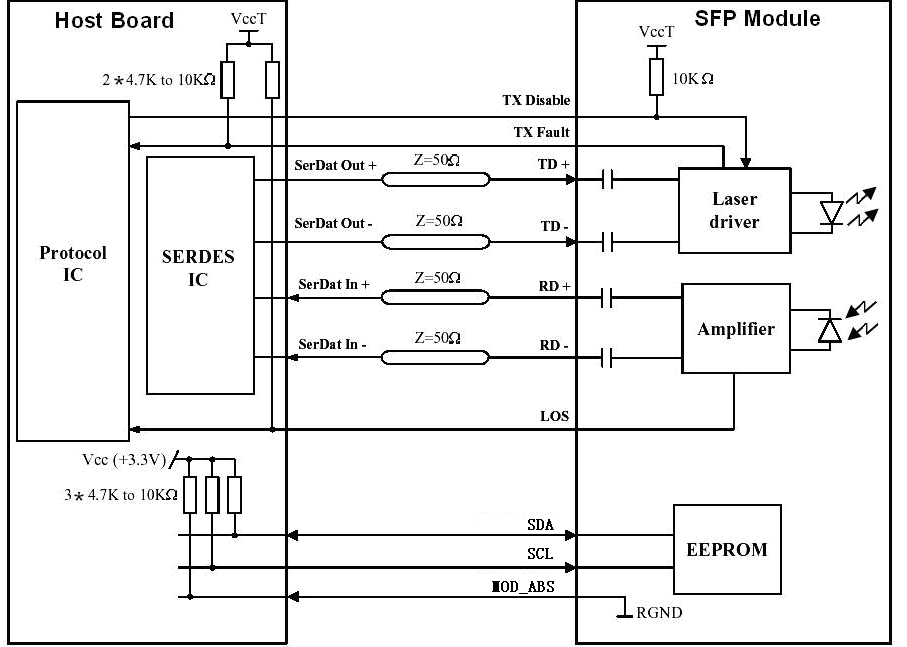

Recommended Interface Circuit
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

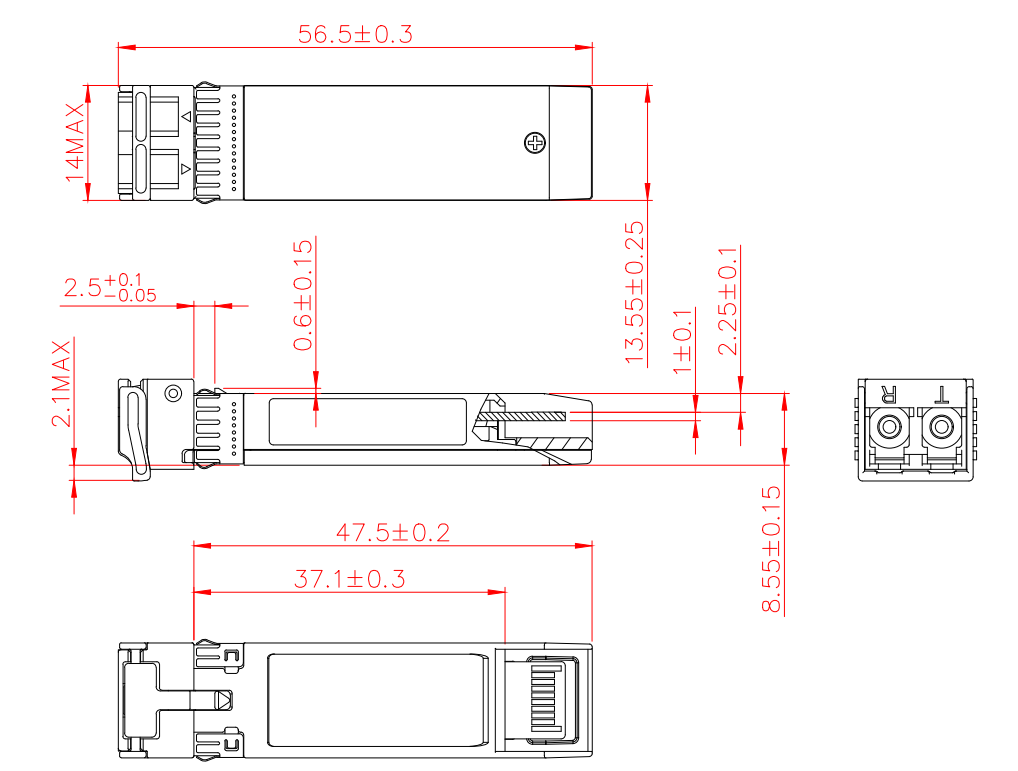

Mechanical Dimensions
Units: mm
Pin Assignment and Description
| Pin | Signal Name | Description | Plug Seq. |
|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 |
| 2 | TX FAULT | Transmitter Fault Indication | 3 |
| 3 | TX DISABLE | Transmitter Disable | 3 |
| 4 | SDA | SDA Serial Data Signal | 3 |
| 5 | SCL | SCL Serial Clock Signal | 3 |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 |
| 7 | RS0 | Not Connected | 3 |
| 8 | LOS | Loss of Signal | 3 |
| 9 | RS1 | Not Connected | 3 |
| 10 | VeeR | Receiver ground | 1 |
| 11 | VeeR | Receiver ground | 1 |
| 12 | RD- | Inv. Received Data Out | 3 |
| 13 | RD+ | Received Data Out | 3 |
| 14 | VeeR | Receiver ground | 1 |
| 15 | VCCR | Receiver Power Supply | 2 |
| 16 | VCCT | Transmitter Power Supply | 2 |
| 17 | VeeT | Transmitter Ground | 1 |
| 18 | TD+ | Transmit Data In | 3 |
| 19 | TD- | Inv. Transmit Data In | 3 |
| 20 | VeeT | Transmitter Ground | 1 |
ESD
This transceiver is specified as ESD threshold 1kV for high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
FluxLight's Full Line of 10GBase-SR Transceivers
- Alcatel-LucentiSFP-10G-SR-FL
- Allied TelesisAT-SP10SR-FL
- AristaSFP-10G-SR-A-FL
- AristaSFP-10G-SR-A-FLT
- ArubaJ9150D-FL
- AvagoAFBR-703SDDZ-FL
- Brocade-Foundry10G-SFPP-SR-FL
- CienaXCVR-S00Z85-FL
- CiscoSFP-10G-SR-FL
- CiscoSFP-10G-SR-FLT
- CiscoSFP-10G-SR-S-FL
- CiscoSFP-10G-SR-S-FLT
- CiscoSFP-10G-SR-X-FL
- Dell407-BBGM-FL
- Dell407-BBOJ-FL
- Dell407-BBOU-FL
- Dell407-BBPC-FL
- Dell407-BBRJ-FL
- Dell407-BBVJ-FL
- Dell407-BBZM-FL
- Dell407-BCBH-FL
- Dell407-BCBN-FL
- D-LinkDEM-431XT-FL
- Extreme10301-FL
- F5F5-UPG-SFP+-R-FL
- F5OPT-0016-00-FL
- FinisarFTLX1772M3BCL-FL
- FinisarFTLX8574D3BCL-FL
- FinisarFTLX8574D3BCV-FL
- FinisarFTLX8574D3BNL-FL
- FortinetFN-TRAN-SFP+SR-FL
- HPJ9150A-FL
- HPJD092B-FL
- HUAWEI0231A0A6-FL
- IBM46C3447-FL
- IntelE10GSFPSR-FL
- JuniperEX-SFP-10GE-SR-FL
- JuniperEX-SFP-10GE-SR-FLT
- JuniperQFX-SFP-10GE-SR-FL
- JuniperQFX-SFP-10GE-SR-FLT
- JuniperSFPP-10G-SR-C-FL
- JuniperSFPP-10G-SR-C-FLT
- JuniperSRX-SFP-10GE-SR-FL
- JuniperSRX-SFP-10GE-SR-FLT
- JuniperSRX-SFPP-10G-SR-ET-FL
- LinksysLACXGSR-FL
- MerakiMA-SFP-10GB-SR-FL
- MerakiMA-SFP-10GB-SR-FLT
- NetgearAXM761-FL
- Nokia3HE04824AA-FL
- Nokia3HE04824AA-IND-FL
- Nokia3HE09326AA-FL
- Nokia3HE09326AA-IND-FL
- Palo AltoPAN-SFP-PLUS-SR-FL
- Sonicwall01-SSC-9785-FL
Licensing
The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The 3HE04824AA-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.
U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)
Original Equipment Manufacturer (OEM) names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for cross reference/comparative purposes only.
Warranty
This part is covered by our Limited Lifetime Warranty, a 10-year serviceable lifetime, and our 30-Day Money-Back Guarantee. Read the full warranty and return terms.
