Dell 407-BBVN-FL Datasheet (100GBase, SWDM4, QSFP28, MMF, 150m, Dual-LC, COM, EXT, IND) Fiber Optic Transceiver

Dell Compatible

407-BBVN-FL Dell 407-BBVN Compatible 100GBase-SWDM4 QSFP28 850/880/910/940nm 150m DOM Duplex LC MMF Optical Transceiver Module

Name: Dell 407-BBVN Compatible 100GBase-SWDM4 QSFP28 850/880/910/940nm 150m DOM Duplex LC MMF Optical Transceiver Module
Brand: Dell Compatible
SKU: 407-BBVN-FL
Availability: InStock

$349.99

90 in stock

Order by 3 PM CT for same-day shipping

Free continental US shipping on orders over $99 Details

Guaranteed compatible with Dell
10-year warranty
30-day money-back guarantee

Need a larger quantity? Request a quote

Questions? Call (888) 874-7574

Quick Specs

Rate Category: 100G
Form Factor: QSFP28
Interface Type: 100G-SWDM4
Standard / Protocol: 100G-SWDM4 MSA, QSFP28 MSA (SFF-8665)
TX Wavelength: 850/880/910/940nm
RX Wavelength: 850/880/910/940nm
Cable Type: MMF
Reach: 75m (OM3), 100m (OM4)
DDM: Supported
Connector Type: Duplex LC (UPC)
Power Consumption: 3.5W max
Operating Temperature: 0°C to +70°C (COM)

Overview

The 407-BBVN-FL transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850, 880, 910, 940nm region @ 25.78Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA. The 407-BBVN-FL is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Applications

100G Ethernet over duplex multimode fiber (OM3/OM4)
Data center migration from 10G/40G to 100G on the installed duplex LC cable plant
Leaf-spine and ToR/EoR switch interconnects
High-performance computing interconnect

Features

Compliant with the 100G-SWDM4 MSA
QSFP28 MSA compliant (SFF-8665), hot-pluggable
4 × 25.78125 Gb/s NRZ lanes on four SWDM wavelengths (850/880/910/940nm)
4-wavelength VCSEL transmitter, photodiode array receiver with linear amplifier
100G over duplex multimode fiber, so no MPO trunks are needed
Up to 75m on OM3 and 100m on OM4 (RS-FEC required on host)

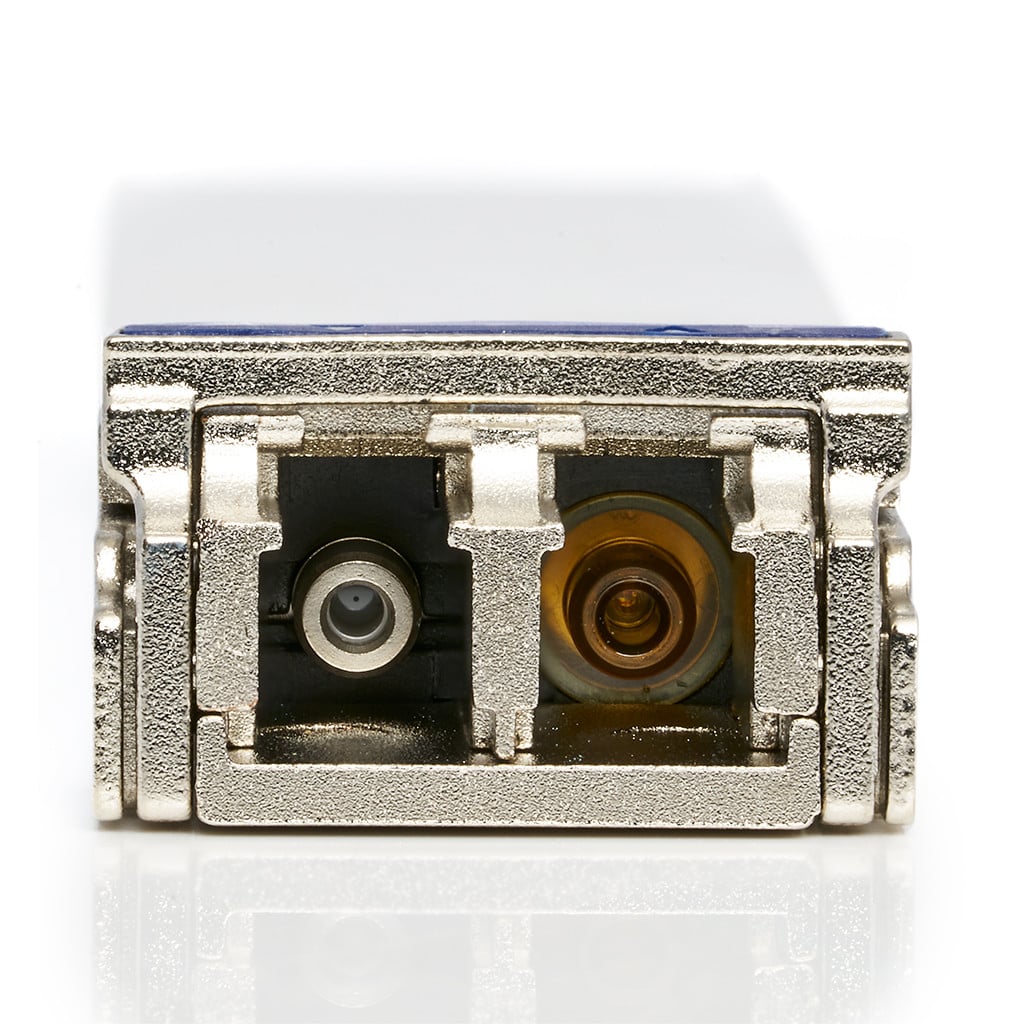

Duplex LC (UPC) connector
OMA launch power −5.5 to +3 dBm per lane; unstressed receiver sensitivity −8.2 dBm OMA per lane
Digital Diagnostics Monitoring (DDM/DOM) per SFF-8636
Single +3.3V power supply, 3.5W max power dissipation
Operating case temperature: 0°C to +70°C (COM)
Class 1 laser product (IEC 60825-1)
RoHS 6 compliant
100% compatible with OEM equipment
Backed by a lifetime warranty

Absolute Maximum Rating

The operation in excess of any absolute maximum ratings might cause permanent damage to this module.

Parameter	Symbol	Min	Max	Unit
Storage Temperature	TS	-40	85	°C
Power Supply Voltage	VCC	0	3.6	V
Relative Humidity	RH	15	85	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature	TOP	0		70	°C
Supply Voltage	VCC	3.135	3.3	3.465	V
Data Rate (Each Lane)	DR		25.78125		Gb/s
Power Consumption	PC			3.5	W
50 / 125 um MMF OM3	D			75	m	RS-FEC required
50 / 125 um MMF OM4	D			100	m	RS-FEC required

Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Min	Typical	Max	Unit
Transmitter
Signaling rate per lane (range)		25.78125 ± 100 ppm		GBd
Differential input return loss	Equation (83E–5)			dB
Differential to common mode input return loss	Equation (83E–6)			dB
Differential pk-pk input voltage tolerance	900			mV
DC common mode voltage	-350		2850	mV
Single ended voltage tolerance range	-0.4		3.3	V
Receiver
Signaling rate per lane (range)		25.78125 ± 100 ppm		GBd
AC common-mode output voltage (RMS)			17.5	mV
Differential output voltage			900	mV
Eye width	0.57			UI
Eye height, differential	228			mV
Vertical eye closure			5.5	dB
Differential output return loss	Equation (83E–2)			dB
Common to differential mode conversion return loss	Equation (83E–3)			dB
Transition time (20% to 80%)	12			ps

Optical Characteristics

Parameter	Symbol	Min	Max	Unit	Notes
Transmitter
Lane Wavelength Range	Lane0 Lane1 Lane2 Lane3	844 874 904 934	858 888 918 948	nm
Optical Modulation Amplitude (OMA), each lane	OMA	-5.5	3	dBm
Extinction ratio	ER	2		dB
Average Output Power (Laser Off)	POFF		-30	dBm
RMS Spectral Width	Δλ		0.6	nm
Optical Return Loss Tolerance	ORLT		12	dB
Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3}, Hit ratio 1.5×10⁻³ hits/sample		{0.3, 0.38, 0.45, 0.35, 0.41, 0.5}
Receiver
Lane Wavelength Range	Lane0 Lane1 Lane2 Lane3	844 874 904 934	858 888 918 948	nm
Average receive power, each lane		-9.5	3.4	dBm
Unstressed Receiver Sensitivity (OMA), each lane			-8.2	dBm	BER = 5E-5, measured with PRBS 2³¹−1 at 25.78Gb/s
Receiver Damage Threshold, per Lane	PRdmg	4.4		dBm
Receiver Reflectance	RFL		-12	dB
LOS Assert	LOSA		-30	dBm
LOS De-Assert	LOSD		-12	dBm
LOS Hysteresis	LOSH	0.5		dB

Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

Parameter	Symbol	Min	Max	Unit
Temperature monitor absolute error	DMI_Temp	-5	5	°C
Supply voltage monitor absolute error	DMI_VCC	-0.1	0.1	V
Channel RX power monitor absolute error	DMI_RX_Ch	-3	3	dB
Channel Bias current monitor	DMI_Ibias_Ch	-10%	10%	mA
Channel TX power monitor absolute error	DMI_TX_Ch	-3	3	dB

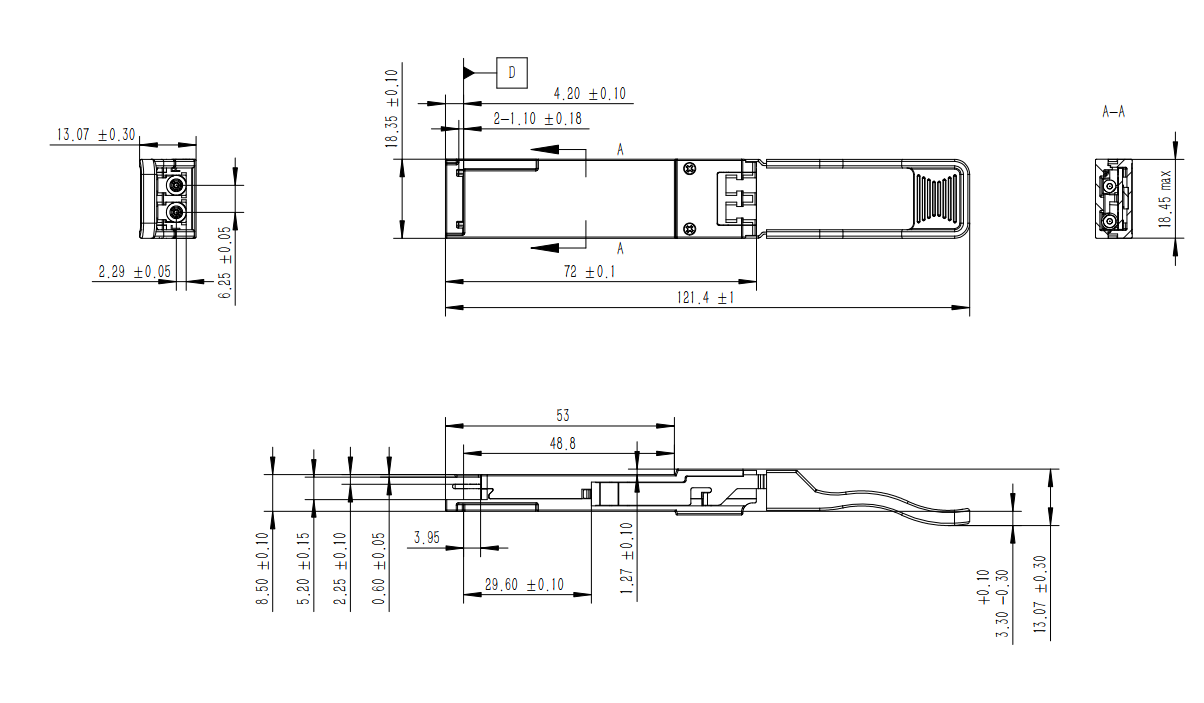

Mechanical Dimensions

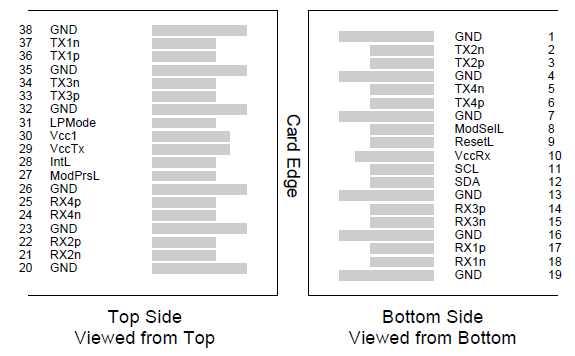

Pin Assignment and Description

Pin	Logic	Symbol	Description	Plug Sequence
1		GND	Ground	1
2	CML-I	Tx2n	Transmitter Inverted Data Input	3
3	CML-I	Tx2p	Transmitter Non-Inverted Data Input	3
4		GND	Ground	1
5	CML-I	Tx4n	Transmitter Inverted Data Input	3
6	CML-I	Tx4p	Transmitter Non-Inverted Data Input	3
7		GND	Ground	1
8	LVTTL-I	ModSelL	Module Select	3
9	LVTTL-I	ResetL	Module Reset	3
10		VccRx	+3.3V Power Supply Receiver	2
11	LVCMOS-I/O	SCL	2-Wire Serial Interface Clock	3
12	LVCMOS-I/O	SDA	2-Wire Serial Interface Data	3
13		GND	Ground	1
14	CML-O	Rx3p	Receiver Non-Inverted Data Output	3
15	CML-O	Rx3n	Receiver Inverted Data Output	3
16		GND	Ground	1
17	CML-O	Rx1p	Receiver Non-Inverted Data Output	3
18	CML-O	Rx1n	Receiver Inverted Data Output	3
19		GND	Ground	1
20		GND	Ground	1
21	CML-O	Rx2n	Receiver Inverted Data Output	3
22	CML-O	Rx2p	Receiver Non-Inverted Data Output	3
23		GND	Ground	1
24	CML-O	Rx4n	Receiver Inverted Data Output	3
25	CML-O	Rx4p	Receiver Non-Inverted Data Output	3
26		GND	Ground	1
27	LVTTL-O	ModPrsL	Module Present	3
28	LVTTL-O	IntL	Interrupt	3
29		VccTx	+3.3V Power Supply Transmitter	2
30		Vcc1	+3.3V Power Supply	2
31	LVTTL-I	LPMode	Low Power Mode	3
32		GND	Ground	1
33	CML-I	Tx3p	Transmitter Non-Inverted Data Input	3
34	CML-I	Tx3n	Transmitter Inverted Data Input	3
35		GND	Ground	1
36	CML-I	Tx1p	Transmitter Non-Inverted Data Input	3
37	CML-I	Tx1n	Transmitter Inverted Data Input	3
38		GND	Ground	1

ESD

This transceiver is specified as ESD threshold 1kV for high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

Laser Safety

This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).

PowerSwitch9

S3248T-ON
S4300-ON
S5212F-ON
S5224F-ON
S5448F-ON
Z9264F-ON
Z9332F-ON
Z9432F-ON
Z9664F-ON

FluxLight's Full Line of 100GBase-SWDM4 Optical Transceiver

Licensing

The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The 407-BBVN-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.

U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)
