E25GSFP28SR-FL Intel E25GSFP28SR Compatible 25GBase-SR SFP28 850nm 100m DOM Duplex LC MMF Optical Transceiver Module
- Guaranteed compatible with Intel
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 25G
- Form Factor
- SFP28
- Interface Type
- 25GBASE-SR
- Standard / Protocol
- IEEE 802.3by 25GBASE-SR
- TX Wavelength
- 850nm
- RX Wavelength
- 850nm
- Cable Type
- MMF
- Reach
- 70m (OM3), 100m (OM4)
- DDM
- Supported
- Connector Type
- Duplex LC (UPC)
- Power Consumption
- 1W max
- Operating Temperature
- 0°C to +70°C (COM)
Overview
FluxLight's E25GSFP28SR-FL is a Intel® compatible 25GBase-SR SFP28 Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Intel® original transceivers and are 100% compatible with other OEM and third party transceivers. The Intel E25GSFP28SR-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Applications
- 25G Ethernet over multimode fiber (OM3/OM4)
- Data center short-reach interconnect: server-to-switch, ToR/EoR and leaf uplinks
- 25G server and storage NIC connections
- 4×25G breakout from 100GBASE-SR4 ports using MPO-to-duplex-LC fan-out cables
Features
- Compliant with IEEE 802.3by 25GBASE-SR
- SFP28 MSA compliant (SFF-8402), hot-pluggable
- 25.78125Gb/s data rate
- 850nm VCSEL transmitter, GaAs photodetector receiver
- Built-in Tx and Rx clock and data recovery (CDR)
- Up to 70m on OM3 and 100m on OM4 multimode fiber (RS-FEC required on host)
- Duplex LC (UPC) connector
- Average launch power −8.4 to +2.4 dBm; receiver sensitivity −7.2 dBm (unstressed)
- Digital Diagnostics Monitoring (DDM/DOM) per SFF-8472
- Single +3.3V power supply, <1W power dissipation
- Operating case temperature: 0°C to +70°C (COM)
- Class 1 laser product (IEC 60825-1)
- RoHS 6 compliant
- 100% compatible with OEM equipment
- Backed by a lifetime warranty
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | TOP | 0 | 70 | °C |
| Power Supply Voltage | VCC | -0.3 | 3.6 | V |
| Relative Humidity (non-condensation) | RH | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Data Rate | 25.78125 | Gb/s | |||
| Data Rate Accuracy | -100 | 100 | ppm | ||
| Tx_DISABLE Input Voltage – High | 2 | V | |||
| Tx_DISABLE Input Voltage – Low | 0.8 | V | |||
| Link Distance, OM3 (50/125 µm) | D | 70 | m | ||
| Link Distance, OM4 (50/125 µm) | D | 100 | m |
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Power Consumption | 1.0 | W | ||||
| Supply Current | Icc | 300 | mA | |||
| Transmitter | ||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |
| Spectral Width (RMS) | Δλ | 0.6 | nm | |||
| Average Output Power | Pout | -8.4 | 2.4 | dBm | ||
| Extinction Ratio | ER | 2 | dB | |||
| Receiver | ||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |
| Average Receive Power | Pin | -10.3 | 2.4 | dBm | ||
| Unstressed Receiver Sensitivity | Sen | -7.2 | dBm | 1 | ||
| Receiver Reflectance | RR | -12 | dB | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS De-Assert | LOSD | -13 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB | |||
Note:
- BER = 5×10⁻⁵, measured with PRBS 2³¹−1 at 25.78Gb/s. RS-FEC required on host.
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

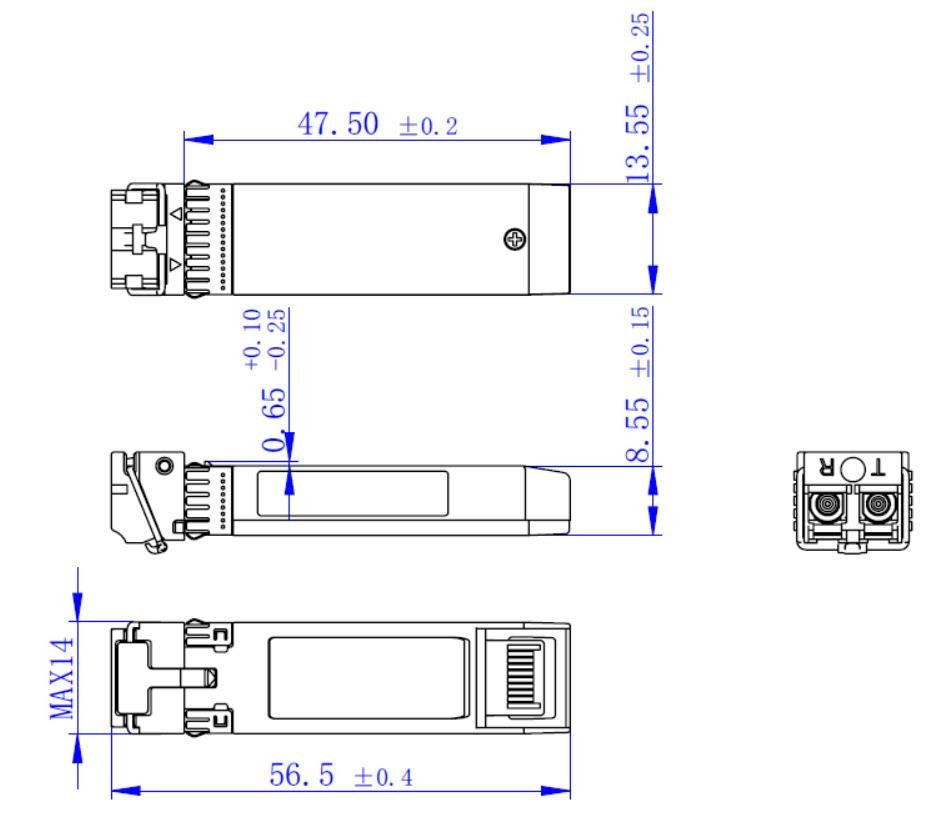

Mechanical Dimensions

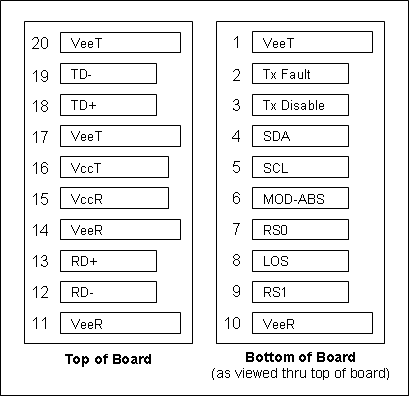

Pin Assignment and Description
| Pin | Signal Name | Description | Plug Seq. |
|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 |
| 2 | TX FAULT | Transmitter Fault Indication | 3 |
| 3 | TX DISABLE | Transmitter Disable | 3 |
| 4 | SDA | SDA Serial Data Signal | 3 |
| 5 | SCL | SCL Serial Clock Signal | 3 |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 |
| 7 | RS0 | Not Connected | 3 |
| 8 | LOS | Loss of Signal | 3 |
| 9 | RS1 | Not Connected | 3 |
| 10 | VeeR | Receiver Ground | 1 |
| 11 | VeeR | Receiver Ground | 1 |
| 12 | RD- | Inv. Received Data Out | 3 |
| 13 | RD+ | Received Data Out | 3 |
| 14 | VeeR | Receiver Ground | 1 |
| 15 | VccR | Receiver Power Supply | 2 |
| 16 | VccT | Transmitter Power Supply | 2 |
| 17 | VeeT | Transmitter Ground | 1 |
| 18 | TD+ | Transmit Data In | 3 |
| 19 | TD- | Inv. Transmit Data In | 3 |
| 20 | VeeT | Transmitter Ground | 1 |
ESD
This transceiver is specified as ESD threshold 1kV for high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
