FN-TRAN-SFP+LR-FL Fortinet FN-TRAN-SFP+LR Compatible 10GBase-LR SFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
- Guaranteed compatible with Fortinet
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 10G
- Form Factor
- SFP+
- Interface Type
- 10GBASE-LR
- Standard/Protocol
- IEEE 802.3ae 10GBASE-LR
- TX Wavelength
- 1310nm
- RX Wavelength
- 1260-1580nm
- Cable Type
- SMF (G.652)
- Reach
- 10km (SMF)
- DDM
- Supported
- Connector Type
- Duplex LC (UPC)
- Power Consumption
- < 1.0 W
- Operating Temperature
- 0°C to +70°C (COM)
Overview
FluxLight's FN-TRAN-SFP+LR-FL is a Fortinet® compatible 10GBase SFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Fortinet® original transceivers and are 100% compatible with other OEM and third party transceivers. The Fortinet FN-TRAN-SFP+LR-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Applications
- 10 Gigabit Ethernet over single-mode fiber
- Switch and router uplinks, campus backbone and inter-building links up to 10 km
- 10G Fibre Channel / Storage Area Network (SAN)
- 10G SONET/SDH (OC-192 / STM-64)
- OTN transport (OTU1e / OTU2e)
Features
- Hot-pluggable SFP+ footprint with duplex LC receptacle
- Supports 1.25 to 11.3 Gbps line rates; compliant with IEEE 802.3ae 10GBASE-LR
- 1310 nm DFB laser transmitter and PIN photodiode receiver
- Up to 10 km over G.652 single-mode fiber
- Average launch power −8.2 to +0.5 dBm; receiver sensitivity better than −14.4 dBm
- Real-time Digital Diagnostic Monitoring (DDM/DOM) via 2-wire serial interface per SFF-8472
- Single +3.3V power supply with ultra-low power dissipation (< 1.0 W)
- Operating case temperature: 0°C to +70°C (COM)
- SFP+ MSA (SFF-8431) compliant, RoHS-6 compliant, and Class 1 laser eye safety certified (IEC/EN 60825-1)
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | TOP | 0 | 70 | °C |
| Power Supply Voltage | VCC | -0.3 | 3.6 | V |
| Relative Humidity (non-condensation) | RH | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | 1 | W | |||
| Data Rate | DR | 10.3125 | Gbps | ||
| Link Distance with SMF | D | 10 | km |
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Transmitter | ||||||
| Support data rate | 1.25 | 11.3 | Gb/s | |||
| Center Wavelength | 1260 | 1310 | 1355 | nm | ||
| Spectral Width (-20dB) | 1 | nm | ||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Average Optical Output Power | Po | -8.2 | 0.5 | dBm | ||
| Optical Modulation Amplitude | POMA | -5.2 | dBm | |||
| Extinction Ratio | Er | 3.5 | dB | |||
| Transmitter and dispersion penalty | TDP | 3.2 | dB | |||
| Output Power with Transmitter Disabled | Poff | -30 | dBm | |||
| Transmitter Enable Voltage | VEN | -0.3 | 0.8 | V | ||
| Transmitter Disable Voltage | VD | 2.0 | Vcc+0.3 | V | ||
| Differential Data Input Swing | VINpp | 100 | 1000 | mV | ||
| Rise/fall time (20%-80%) | Tr/Tf | 50 | ps | |||
| RIN12OMA | RIN12 | -128 | dB/Hz | |||
| Optical return loss tolerance | -12 | dB | ||||
| Output Eye Diagram | Compliant with IEEE 802.3 | 1 | ||||
| Receiver | ||||||
| Support data rate | 1.25 | 10.3125 | 11.3 | Gb/s | ||
| Operate Wavelength | 1260 | 1580 | nm | |||
| Receiver sensitivity (BER of 1E-12) @10.3125Gb/s | Sen1 | -14.4 | dBm | 2 | ||
| Saturation (BER of 1E-12) | Psat | 0.5 | dBm | 2 | ||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS De-Assert | LOSD | -16 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 5.0 | dB | ||
| Differential Data Output Swing | VOUTPP | 300 | 850 | mV | ||
| LOS Low Voltage | VLout | 0.4 | V | |||
| LOS High Voltage | VHout | 2.0 | V | |||
Notes:
- At least 1000 waveforms acquired, with minimum 5% margin against the IEEE 802.3 mask.
- Tested at 10.3125Gb/s, PRBS 2³¹−1, BER of 1×10⁻¹², NRZ, including back-to-back.

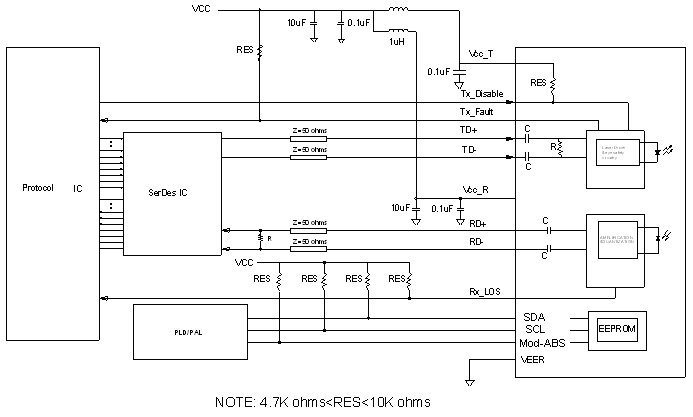

Recommended Interface Circuit
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

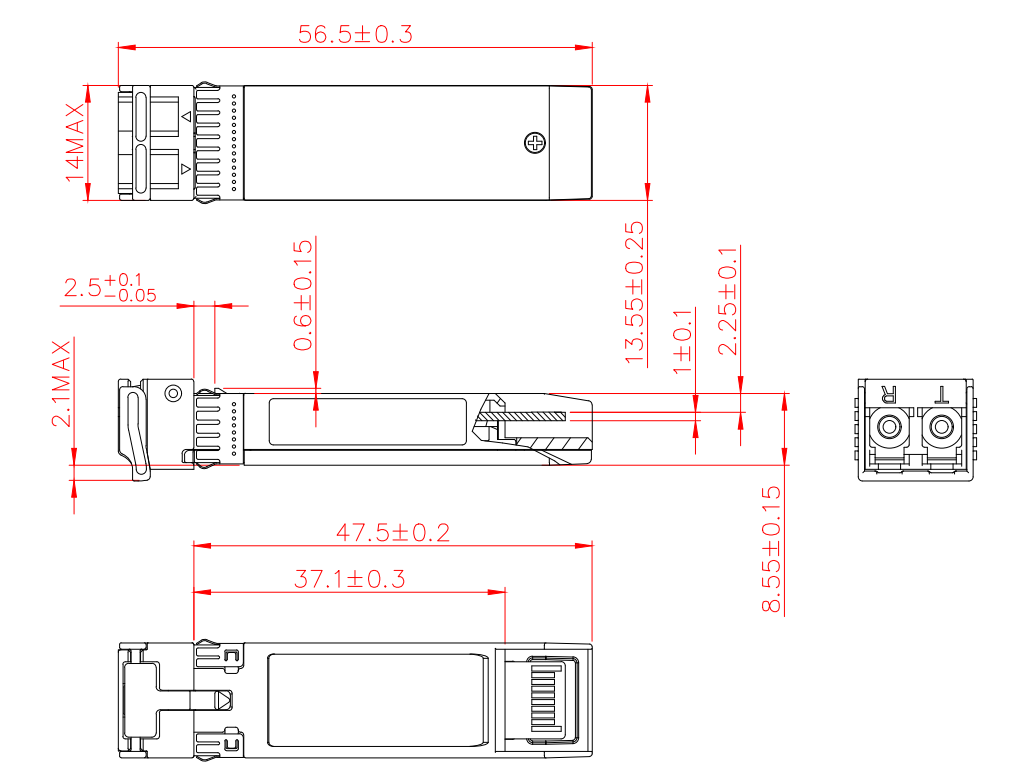

Mechanical Dimensions
Units: mm
Pin Assignment and Description
| Pin | Signal Name | Description | Plug Seq. |
|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 |
| 2 | TX FAULT | Transmitter Fault Indication | 3 |
| 3 | TX DISABLE | Transmitter Disable | 3 |
| 4 | SDA | SDA Serial Data Signal | 3 |
| 5 | SCL | SCL Serial Clock Signal | 3 |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 |
| 7 | RS0 | Not Connected | 3 |
| 8 | LOS | Loss of Signal | 3 |
| 9 | RS1 | Not Connected | 3 |
| 10 | VeeR | Receiver ground | 1 |
| 11 | VeeR | Receiver ground | 1 |
| 12 | RD- | Inv. Received Data Out | 3 |
| 13 | RD+ | Received Data Out | 3 |
| 14 | VeeR | Receiver ground | 1 |
| 15 | VCCR | Receiver Power Supply | 2 |
| 16 | VCCT | Transmitter Power Supply | 2 |
| 17 | VeeT | Transmitter Ground | 1 |
| 18 | TD+ | Transmit Data In | 3 |
| 19 | TD- | Inv. Transmit Data In | 3 |
| 20 | VeeT | Transmitter Ground | 1 |
ESD
This transceiver is specified as ESD threshold 1kV for high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
