Cisco Compatible
GLC-SX-MM-FL Cisco GLC-SX-MM Compatible 1000Base-SX SFP 850nm 500m Duplex LC MMF Optical Transceiver Module
- Guaranteed compatible with Cisco
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 1G
- Form Factor
- SFP
- Interface Type
- 1000BASE-SX
- Standard/Protocol
- IEEE 802.3z 1000BASE-SX
- TX Wavelength
- 850nm
- RX Wavelength
- 850nm
- Cable Type
- MMF
- Reach
- 550m(OM2), 1km(OM3/
OM4) - DDM
- Supported
- Connector Type
- Duplex LC (UPC)
- Power Consumption
- < 1.0 W
- Operating Temperature
- 0°C to +70°C (COM)
Overview
FluxLight's GLC-SX-MM-FL is a Cisco® compatible 1000Base SX SFP Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. This MM SFP fiber transceiver performs identically to Cisco® original transceivers and is 100% compatible with other OEM and third party transceivers. The Cisco GLC-SX-MM-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's Cisco-compatible fiber module transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
FluxLight offers all brands and form factors of Optical Transceivers for all your networking needs. Now you have a reliable, compatible and affordable MM SFP fiber transceiver to expand your network while maintaining its integrity.
Applications
- Gigabit Ethernet over multimode fiber (1000BASE-SX)
- Data center switch-to-switch and switch-to-server links
- Enterprise LAN and intra-building backbone connectivity
- Campus building risers and wiring-closet uplinks
- Short-reach aggregation and storage links within a facility
Features
- Up to 1.25 Gb/s data rate for Gigabit Ethernet
- Compliant with IEEE 802.3z 1000BASE-SX
- 850 nm VCSEL transmitter and PIN photodiode receiver
- For multimode fiber (MMF): up to 550 m (OM2), 275 m (OM1), 1 km (OM3/OM4/OM5)
- Duplex LC connector; hot-pluggable SFP footprint
- Extinction ratio ≥ 9 dB; 8 dB optical link budget
- Digital Diagnostics Monitoring (DDM/DOM) per SFF-8472
- SFP MSA (SFF-8074i) compliant
- AC-coupled CML data interface; single +3.3 V supply, < 1 W
- Class 1 laser safety (IEC/EN 60825-1); RoHS-compliant and lead-free
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | TOP | 0 | 70 | °C |
| Power Supply Voltage | VCC | -0.3 | 3.6 | V |
| Relative Humidity (non-condensation) | RH | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | 1 | W | |||
| Data Rate | DR | 1.25 | Gbps | ||
| Link Distance with MMF | D | 550 | m |
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Transmitter | |||||
| Center Wavelength | λC | 840 | 850 | 860 | nm |
| RMS Spectral Width | λrms | 0.85 | nm | ||
| Average Launch Power | PAVG | -9 | -3 | dBm | |
| Rise/Fall Time | Tr/Tf | 260 | ps | ||
| Extinction Ratio | ER | 9 | dB | ||
| Transmitter Eye Mask | Compliant with IEEE 802.3 standard | ||||
| Receiver | |||||
| Center Wavelength | λC | 770 | 860 | nm | |
| Damage Threshold | THd | 0 | dBm | ||
| Receiver Sensitivity | SEN | -17 | dBm | ||
| LOS Assert | LOSA | -35 | dBm | ||
| LOS De-Assert | LOSD | -18 | dBm | ||
| LOS Hysteresis | LOSH | 1 | dB | ||

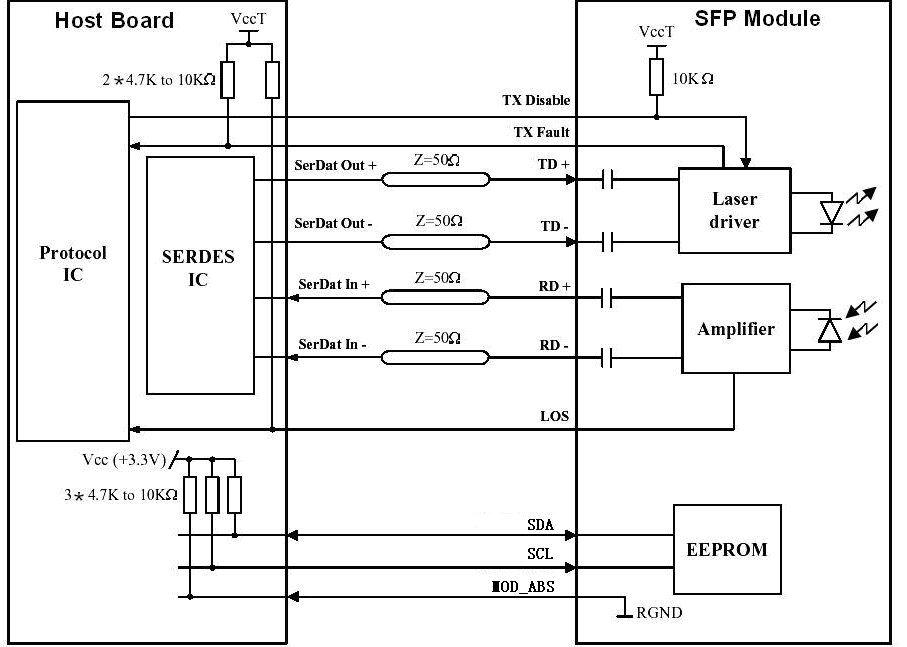

Recommended Interface Circuit
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

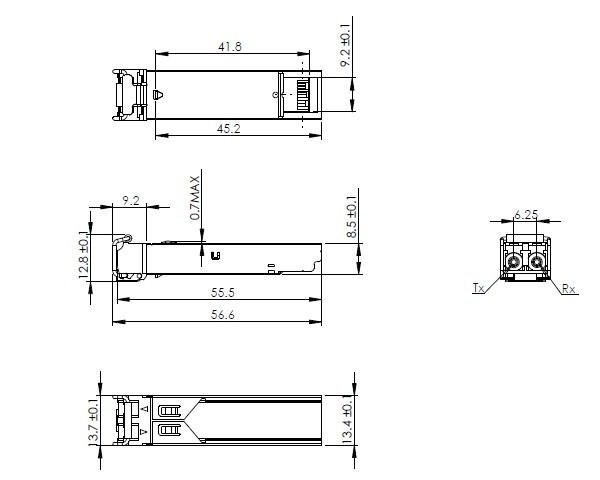

Mechanical Dimensions

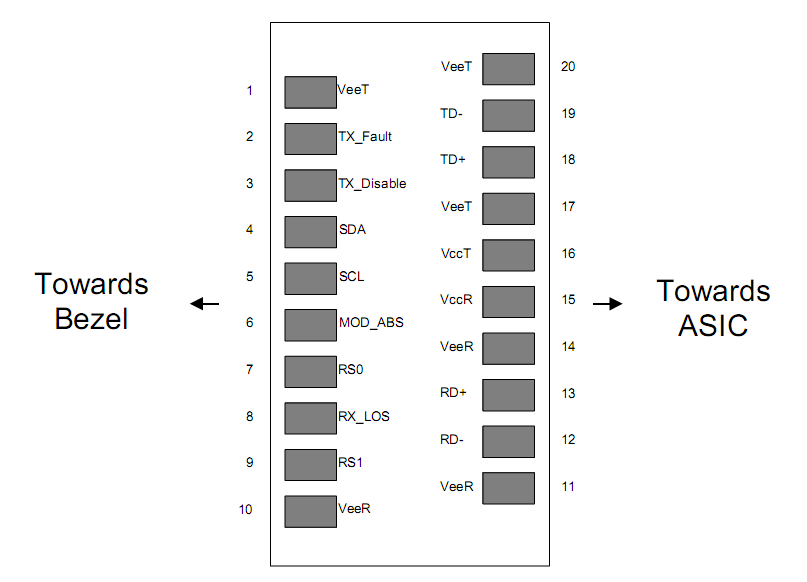

Pin Assignment and Description
| Pin | Signal Name | Description | Plug Seq. | Notes |
|---|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 | 1 |
| 2 | TX FAULT | Transmitter Fault Indication | 3 | |
| 3 | TX DISABLE | Transmitter Disable | 3 | 2 |
| 4 | SDA | SDA Serial Data Signal | 3 | 3 |
| 5 | SCL | SCL Serial Clock Signal | 3 | 3 |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 | 3 |
| 7 | RS0 | Not Connected | 3 | 4 |
| 8 | LOS | Loss of Signal | 3 | 5 |
| 9 | RS1 | Not Connected | 3 | 4 |
| 10 | VeeR | Receiver ground | 1 | 1 |
| 11 | VeeR | Receiver ground | 1 | 1 |
| 12 | RD- | Inv. Received Data Out | 3 | 6 |
| 13 | RD+ | Received Data Out | 3 | 6 |
| 14 | VeeR | Receiver ground | 1 | 1 |
| 15 | VCCR | Receiver Power Supply | 2 | |
| 16 | VCCT | Transmitter Power Supply | 2 | |
| 17 | VeeT | Transmitter Ground | 1 | |
| 18 | TD+ | Transmit Data In | 3 | 6 |
| 19 | TD- | Inv. Transmit Data In | 3 | 6 |
| 20 | VeeT | Transmitter Ground | 1 |
Notes:
- Circuit ground is internally isolated from chassis ground.
- Laser output disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V.
- Should be pulled up with 4.7–10 kΩ on the host board to a voltage between 2.0V and 3.6V. MOD_DEF(0) pulls the line low to indicate the module is plugged in.
- Rate select is not used.
- LOS is an open-collector output. Should be pulled up with 4.7–10 kΩ on the host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.
- AC coupled.
ESD
This transceiver is specified as ESD threshold 1kV for high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
Catalyst 100027
- C1000-8FP-2G-L
- C1000-8FP-E-2G-L
- C1000-8P-2G-L
- C1000-8P-E-2G-L
- C1000-8T-2G-L
- C1000-8T-E-2G-L
- C1000-16FP-2G-L
- C1000-16P-2G-L
- C1000-16P-E-2G-L
- C1000-16T-2G-L
- C1000-16T-E-2G-L
- C1000-24FP-4G-L
- C1000-24FP-4X-L
- C1000-24P-4G-L
- C1000-24P-4X-L
- C1000-24T-4G-L
- C1000-24T-4X-L
- C1000-48FP-4G-L
- C1000-48FP-4X-L
- C1000-48P-4G-L
- C1000-48P-4X-L
- C1000-48T-4G-L
- C1000-48T-4X-L
- C1000FE-24P-4G-L
- C1000FE-24T-4G-L
- C1000FE-48P-4G-L
- C1000FE-48T-4G-L
Catalyst 120016
- C1200-8FP-2G
- C1200-8FP-E-2G
- C1200-8P-E-2G
- C1200-8T-E-2G
- C1200-16P-2G
- C1200-16T-2G
- C1200-24FP-4G
- C1200-24FP-4X
- C1200-24P-4G
- C1200-24P-4X
- C1200-24T-4G
- C1200-24T-4X
- C1200-48P-4G
- C1200-48P-4X
- C1200-48T-4G
- C1200-48T-4X
Catalyst 130028
- C1300-8FP-2G
- C1300-8MGP-2X
- C1300-8P-E-2G
- C1300-8T-E-2G
- C1300-12XS
- C1300-12XT-2X
- C1300-16FP-2G
- C1300-16P-2G
- C1300-16P-4X
- C1300-16T-2G
- C1300-16XTS
- C1300-24FP-4G
- C1300-24FP-4X
- C1300-24MGP-4X
- C1300-24P-4G
- C1300-24P-4X
- C1300-24T-4G
- C1300-24T-4X
- C1300-24XS
- C1300-24XT
- C1300-24XTS
- C1300-48FP-4G
- C1300-48FP-4X
- C1300-48MGP-4X
- C1300-48P-4G
- C1300-48P-4X
- C1300-48T-4G
- C1300-48T-4X
Catalyst 2350 / 23603
- 2350-48TD-S
- 2350-48TD-SD
- 2360-48TD-S
Catalyst 2900 / 2940 / 29504
- WS-C2940-8TF-S
- WS-C2950ST-8 LRE
- WS-C2950ST-24 LRE
- WS-C2950ST-24 LRE997
Catalyst 296085
- 2960S-F24PS-L
- 2960S-F24TS-L
- 2960S-F24TS-S
- 2960S-F48FPS-L
- 2960S-F48LPS-L
- 2960S-F48TS-L
- 2960S-F48TS-S
- WS-C2960-8TC-L
- WS-C2960-8TC-S
- WS-C2960-24LC-S
- WS-C2960-24PC-L
- WS-C2960-24PC-S
- WS-C2960-24TC-L
- WS-C2960-24TC-S
- WS-C2960-48PST-L
- WS-C2960-48PST-S
- WS-C2960-48TC-L
- WS-C2960-48TC-S
- WS-C2960+24LC-L
- WS-C2960+24LC-S
- WS-C2960+24PC-L
- WS-C2960+24PC-S
- WS-C2960+24TC-L
- WS-C2960+24TC-S
- WS-C2960+48PST-L
- WS-C2960+48PST-S
- WS-C2960+48TC-L
- WS-C2960+48TC-S
- WS-C2960C-8PC-L
- WS-C2960C-8TC-L
- WS-C2960C-8TC-S
- WS-C2960C-12PC-L
- WS-C2960CG-8TC-L
- WS-C2960CX-8PC-L
- WS-C2960CX-8TC-L
- WS-C2960G-8TC-L
- WS-C2960G-24TC-L
- WS-C2960G-48TC-L
- WS-C2960L-8PS-LL
- WS-C2960L-8TS-LL
- WS-C2960L-16PS-LL
- WS-C2960L-16TS-LL
- WS-C2960L-24PQ-LL
- WS-C2960L-24PS-LL
- WS-C2960L-24TQ-LL
- WS-C2960L-24TS-LL
- WS-C2960L-48PQ-LL
- WS-C2960L-48PS-LL
- WS-C2960L-48TQ-LL
- WS-C2960L-48TS-LL
- WS-C2960S-24PD-L
- WS-C2960S-24PS-L
- WS-C2960S-24TD-L
- WS-C2960S-24TS-L
- WS-C2960S-24TS-S
- WS-C2960S-48FPD-L
- WS-C2960S-48FPS-L
- WS-C2960S-48LPD-L
- WS-C2960S-48LPS-L
- WS-C2960S-48TD-L
- WS-C2960S-48TS-L
- WS-C2960S-48TS-S
- WS-C2960X-24PD-L
- WS-C2960X-24PS-L
- WS-C2960X-24PSQ-L
- WS-C2960X-24TD-L
- WS-C2960X-24TS-L
- WS-C2960X-24TS-LL
- WS-C2960X-48FPD-L
- WS-C2960X-48FPS-L
- WS-C2960X-48LPD-L
- WS-C2960X-48LPS-L
- WS-C2960X-48TD-L
- WS-C2960X-48TS-L
- WS-C2960X-48TS-LL
- WS-C2960XR-24PD-I
- WS-C2960XR-24PS-I
- WS-C2960XR-24TD-I
- WS-C2960XR-24TS-I
- WS-C2960XR-48FPD-I
- WS-C2960XR-48FPS-I
- WS-C2960XR-48LPD-I
- WS-C2960XR-48LPS-I
- WS-C2960XR-48TD-I
- WS-C2960XR-48TS-I
Catalyst 2970 / 29752
- WS-C2970G-24TS-E
- WS-C2975GS-48PS-L
Catalyst 356036
- WS-C3560-8PC
- WS-C3560-12PC-S
- WS-C3560-24PS
- WS-C3560-24TS
- WS-C3560-48PS
- WS-C3560-48TS
- WS-C3560C-8PC-S
- WS-C3560C-12PC-S
- WS-C3560CG-8PC-S
- WS-C3560CG-8TC-S
- WS-C3560CX-8PC-S
- WS-C3560CX-8TC-S
- WS-C3560CX-8XPD-S
- WS-C3560CX-12PC-S
- WS-C3560CX-12PD-S
- WS-C3560CX-12TC-S
- WS-C3560E-12D
- WS-C3560E-12SD
- WS-C3560E-24PD
- WS-C3560E-24TD
- WS-C3560E-48PD
- WS-C3560E-48PDF
- WS-C3560E-48TD
- WS-C3560G-24PS
- WS-C3560G-24TS
- WS-C3560G-48PS
- WS-C3560G-48TS
- WS-C3560V2-24PS
- WS-C3560V2-24TS
- WS-C3560V2-48PS
- WS-C3560V2-48TS
- WS-C3560X-24P
- WS-C3560X-24T
- WS-C3560X-48P
- WS-C3560X-48PF
- WS-C3560X-48T
Catalyst 365019
- WS-C3650-8X24PD
- WS-C3650-8X24UQ
- WS-C3650-12X48UQ
- WS-C3650-12X48UR
- WS-C3650-24PD
- WS-C3650-24PDM
- WS-C3650-24PS
- WS-C3650-24TD
- WS-C3650-24TS
- WS-C3650-48FD
- WS-C3650-48FQ
- WS-C3650-48FQM
- WS-C3650-48FS
- WS-C3650-48PD
- WS-C3650-48PQ
- WS-C3650-48PS
- WS-C3650-48TD
- WS-C3650-48TQ
- WS-C3650-48TS
Catalyst 375028
- WS-C3750-24FS-S
- WS-C3750-24PS
- WS-C3750-24TS
- WS-C3750-24WFS
- WS-C3750-48PS
- WS-C3750-48TS
- WS-C3750E-24PD
- WS-C3750E-24TD
- WS-C3750E-48PD
- WS-C3750E-48PDF
- WS-C3750E-48TD
- WS-C3750G-12S
- WS-C3750G-24PS
- WS-C3750G-24TS
- WS-C3750G-48PS
- WS-C3750G-48TS
- WS-C3750V2-24FS
- WS-C3750V2-24PS
- WS-C3750V2-24TS
- WS-C3750V2-48PS
- WS-C3750V2-48TS
- WS-C3750X-12S
- WS-C3750X-24P
- WS-C3750X-24S
- WS-C3750X-24T
- WS-C3750X-48P
- WS-C3750X-48PF
- WS-C3750X-48T
Catalyst 385011
- C3850-NM-2-10G
- C3850-NM-4-1G
- C3850-NM-4-10G
- C3850-NM-8-10G
- WS-C3850-12S
- WS-C3850-12XS
- WS-C3850-16XS
- WS-C3850-24S
- WS-C3850-24XS
- WS-C3850-32XS
- WS-C3850-48XS
Catalyst 4500 / 4500-X27
- C4KX-NM-8SFP+
- WS-C4500X-16SFP+
- WS-C4500X-24X-ES
- WS-C4500X-32SFP+
- WS-C4500X-40X-ES
- WS-C4500X-F-16SFP+
- WS-C4500X-F-32SFP+
- WS-X45-SUP6-E
- WS-X45-SUP6L-E
- WS-X45-SUP7-E
- WS-X45-SUP7L-E
- WS-X45-SUP8-E
- WS-X45-SUP8L-E
- WS-X45-SUP9-E
- WS-X4013+10GE
- WS-X4013+TS
- WS-X4448-GB-SFP
- WS-X4506-GB-T
- WS-X4516-10GE
- WS-X4606-X2-E
- WS-X4612-SFP-E
- WS-X4624-SFP-E
- WS-X4640-CSFP-E
- WS-X4712-SFP-E
- WS-X4712-SFP+E
- WS-X4724-SFP-E
- WS-X4748-SFP-E
Catalyst 49007
- ME-4924-10GE
- WS-4928-10GE
- WS-C4948
- WS-C4948E
- WS-C4948E-F
- WS-X4904-10GE
- WS-X4908-10GE
Catalyst 6500 / 600020
- ME-C6524GS-8S
- ME-C6524GT-8S
- VS-S2T-10G
- VS-S2T-10G-XL
- VS-S720-10G-3C
- VS-S720-10G-3CXL
- WS-SUP32-10GE-3B
- WS-SUP32-GE-3B
- WS-SUP32-GE-PISA
- WS-SUP720
- WS-SUP720-3B
- WS-SUP720-3BXL
- WS-X6724-SFP
- WS-X6748-SFP
- WS-X6824-SFP-2T
- WS-X6824-SFP-2TXL
- WS-X6848-SFP-2T
- WS-X6848-SFP-2TXL
- WS-X6904-40G-2T
- WS-X6904-40G-2TXL
Catalyst 680021
- C6800-8P10G
- C6800-8P10G-XL
- C6800-16P10G
- C6800-16P10G-XL
- C6800-32P10G
- C6800-32P10G-XL
- C6800-48P-SFP
- C6800-48P-SFP-XL
- C6800-SUP6T
- C6800-SUP6T-XL
- C6800IA-48FPD
- C6800IA-48FPDR
- C6800IA-48TD
- C6816-X-LE
- C6824-X-LE-40G
- C6832-X-LE
- C6840-X-LE-40G
- C6880-X
- C6880-X-16P10G
- C6880-X-LE
- C6880-X-LE-16P10G
Catalyst 920024
- C9200-NM-2Y
- C9200-NM-4G
- C9200-NM-4X
- C9200CX-8P-2X2G
- C9200CX-8P-2XGH
- C9200CX-8UXG-2X
- C9200CX-8UXG-2XH
- C9200CX-12P-2X2G
- C9200CX-12P-2XGH
- C9200CX-12T-2X2G
- C9200L-24P-4G
- C9200L-24P-4X
- C9200L-24PXG-2Y
- C9200L-24PXG-4X
- C9200L-24T-4G
- C9200L-24T-4X
- C9200L-48P-4G
- C9200L-48P-4X
- C9200L-48PL-4G
- C9200L-48PL-4X
- C9200L-48PXG-2Y
- C9200L-48PXG-4X
- C9200L-48T-4G
- C9200L-48T-4X
Catalyst 930029
- C9300-24S
- C9300-48S
- C9300-NM-2Q
- C9300-NM-2Y
- C9300-NM-4G
- C9300-NM-8X
- C9300L-24P-4G
- C9300L-24P-4X
- C9300L-24T-4G
- C9300L-24T-4X
- C9300L-24UXG-2Q
- C9300L-24UXG-4X
- C9300L-48P-4G
- C9300L-48P-4X
- C9300L-48PF-4G
- C9300L-48PF-4X
- C9300L-48T-4G
- C9300L-48T-4X
- C9300L-48UXG-2Q
- C9300L-48UXG-4X
- C9300LM-24U-4Y
- C9300LM-48T-4Y
- C9300LM-48U-4Y
- C9300LM-48UX-4Y
- C9300X-12Y
- C9300X-24Y
- C9300X-NM-2C
- C9300X-NM-4C
- C9300X-NM-8Y
Catalyst 93504
- C9350-24S
- C9350-48S
- C9350-NM-8L
- C9350-NM-8Y
Catalyst 94008
- C9400-LC-24S
- C9400-LC-24XS
- C9400-LC-24XY
- C9400-LC-48S
- C9400-LC-48XS
- C9400-SUP-1
- C9400-SUP-1XL
- C9400-SUP-1XL-Y
Catalyst 950010
- C9500-12Q
- C9500-16X
- C9500-24Q
- C9500-24Y4C
- C9500-32C
- C9500-32QC
- C9500-40X
- C9500-48Y4C
- C9500-NM-2Q
- C9500-NM-8X
Catalyst 95503
- C9550-24L4CD
- C9550-48L4CD
- C9550-96L4D
Catalyst 9600 / 96107
- C9600-LC-24C
- C9600-LC-40YL4CD
- C9600-LC-48S
- C9600-LC-48YL
- C9600-SUP-1
- C9600X-LC-56YL4C
- C9610-LC-40YL4CD
Catalyst Express 500 / 5207
- WS-CE500-24LC
- WS-CE500-24PC
- WS-CE500G-12TC
- WS-CE520-8PC-K9
- WS-CE520-24LC-K9
- WS-CE520-24PC-K9
- WS-CE520G-24TC-K9
Catalyst Micro Switches2
- CMICR-4PC
- CMICR-4PS
Catalyst Blade Switches7
- WS-CBS-3120G-S
- WS-CBS-3130G-S
- WS-CBS3020-HPQ
- WS-CBS3030-DEL
- WS-CBS3032-DEL
- WS-CBS3040-FSC
- WS-CBS3110X-S
Catalyst 9800 Wireless Controllers9
- C9800-18X1GE
- C9800-40-K9
- C9800-80-K9
- C9800-L-C-K9
- C9800-L-F-K9
- CW9800H1
- CW9800H2
- CW9800L
- CW9800M
Wireless LAN Controllers8
- AIR-CT5520
- AIR-CT5760-1K-K9
- AIR-CT5760-25-K9
- AIR-CT5760-50-K9
- AIR-CT5760-100-K9
- AIR-CT5760-250-K9
- AIR-CT5760-500-K9
- AIR-CT5760-HA-K9
Business 220 / 250 / 350 Switches3
- CBS220
- CBS250
- CBS350
Industrial Ethernet Switches101
- IE-1000-4P2S-LM
- IE-1000-8P2S-LM
- IE-2000-4S-TS-G-B
- IE-2000-4S-TS-G-L
- IE-2000-4TS-G-B
- IE-2000-4TS-G-L
- IE-2000-8TC-G-B
- IE-2000-8TC-G-E
- IE-2000-8TC-G-L
- IE-2000-8TC-G-N
- IE-2000-16PTC-G-E
- IE-2000-16PTC-G-L
- IE-2000-16PTC-G-NX
- IE-2000-16TC-G-E
- IE-2000-16TC-G-L
- IE-2000-16TC-G-N
- IE-2000-16TC-G-X
- IE-2000U-4S-G
- IE-3000-4TC
- IE-3000-8TC
- IE-3010-16S-8PC
- IE-3010-24TC
- IE-3100-4P2S-E
- IE-3100-4T2S-E
- IE-3100-8P2C-E
- IE-3100-8T2C-E
- IE-3100-8T4S-E
- IE-3100-18T2C-CC-E
- IE-3100-18T2C-E
- IE-3105-8T2C-E
- IE-3105-18T2C-E
- IE-3200-8P2S-E
- IE-3200-8T2S-E
- IE-3300-8P2S-A
- IE-3300-8P2S-E
- IE-3300-8T2S-A
- IE-3300-8T2S-E
- IE-3300-8T2X-A
- IE-3300-8T2X-E
- IE-3300-8U2X-A
- IE-3300-8U2X-E
- IE-3400-8P2S-A
- IE-3400-8P2S-E
- IE-3400-8T2S-A
- IE-3400-8T2S-E
- IE-3500-8P3S-A
- IE-3500-8P3S-E
- IE-3500-8T3S-A
- IE-3500-8T3S-E
- IE-3500-8T3X-A
- IE-3500-8T3X-E
- IE-3500-8U3X-A
- IE-3500-8U3X-E
- IE-3505-8P3S-A
- IE-3505-8P3S-E
- IE-3505-8T3S-A
- IE-3505-8T3S-E
- IE-4000-4GC4GP4G-E
- IE-4000-4GS8GP4G-E
- IE-4000-4S8P4G-E
- IE-4000-4T4P4G-E
- IE-4000-4TC4G-E
- IE-4000-8GS4G-E
- IE-4000-8GT4G-E
- IE-4000-8GT8GP4G-E
- IE-4000-8S4G-E
- IE-4000-8T4G-E
- IE-4000-16GT4G-E
- IE-4000-16T4G-E
- IE-4010-4S24P
- IE-4010-16S12P
- IE-5000-12S12P-10G
- IE-5000-16S12P
- IE-9310-16P8S4X-A
- IE-9310-16P8S4X-E
- IE-9310-26S2C-A
- IE-9310-26S2C-E
- IE-9320-16P8U4X-A
- IE-9320-16P8U4X-E
- IE-9320-22S2C4X-A
- IE-9320-22S2C4X-E
- IE-9320-24P4S-A
- IE-9320-24P4S-E
- IE-9320-24P4X-A
- IE-9320-24P4X-E
- IE-9320-24T4X-A
- IE-9320-24T4X-E
- IE-9320-26S2C-A
- IE-9320-26S2C-E
- IE2000U-4TS-G
- IE2000U-8TC-G
- IE2000U-16TC-G
- IE2000U-16TC-G-X
- IE2000U-16TC-GP
- IEM-3300-6T2S
- IEM-3300-8S
- IEM-3300-14T2S
- IEM-3400-8S
- IEM-3500-6T2S
- IEM-3500-8S
- IEM-3500-14T2S
Industrial Routers9
- IR1101-A-K9
- IR1101-K9
- IR1821-K9
- IR1831-K9
- IR1833-K9
- IR1835-K9
- IR8340-K9
- IRM-1100-SP
- IRM-1100-SPMI
Connected Grid Routers and Switches5
- CGR 2010
- CGS-2520-16S-8PC
- CGS-2520-24TC
- GRWIC-D-ES-2S-8PC
- GRWIC-D-ES-6S
Embedded Services Routers and Switches4
- ESR-6300-CON-K9
- ESR-6300-NCP-K9
- ESS-3300-NCP-A
- ESS-3300-NCP-E
Metro Ethernet (ME) Switches16
- ME-3400-24FS-A
- ME-3400-24TS-A
- ME-3400-24TS-D
- ME-3400E-24TS-M
- ME-3400EG-2CS-A
- ME-3400EG-12CS-M
- ME-3400G-2CS-A
- ME-3400G-12CS-A
- ME-3400G-12CS-D
- ME-3600X-24CX-M
- ME-3600X-24FS-M
- ME-3600X-24TS-M
- ME-3800X-24FS-M
- ME-C3750-24TE-M
- ME1200-4S-A
- ME1200-4S-D
Nexus 2000 Fabric Extenders2
- N2K-C2232PP
- N2K-C2348UPQ
Nexus 300028
- N3K-C3048TP-1GE
- N3K-C3064PQ-10GE
- N3K-C3064PQ-10GX
- N3K-C3132C-Z
- N3K-C3132Q-40GE
- N3K-C3132Q-40GX
- N3K-C3132Q-V
- N3K-C3132Q-XL
- N3K-C3172PQ-10GE
- N3K-C3172PQ-XL
- N3K-C3172TQ-10GT
- N3K-C3172TQ-32T
- N3K-C3172TQ-XL
- N3K-C3232C
- N3K-C3264C-E
- N3K-C3264Q
- N3K-C3524P-10G
- N3K-C3524P-10GX
- N3K-C3524P-XL
- N3K-C3548P-10G
- N3K-C3548P-10GX
- N3K-C3548P-XL
- N3K-C31108PC-V
- N3K-C31128PQ-10GE
- N3K-C36180YC-R
- N35-FM-48X
- N35-FS-48X
- N35-T-48X
Nexus 40001
- N4K-4001I-XPX
Nexus 500016
- N5K-C5010P-BF
- N5K-C5020P-BF
- N5K-C5548P
- N5K-C5548UP
- N5K-C5596UP
- N5K-C5624Q
- N5K-C5648Q
- N5K-C5672UP
- N5K-C5672UP-16G
- N5K-C5696Q
- N5K-C56128P
- N55-M8P8FP
- N55-M16P
- N55-M16UP
- N5696-M12Q
- N5696-M20UP
Nexus 60005
- N6K-C6001-64P
- N6K-C6001-64T
- N6K-C6004-M12Q
- N6004-B-24Q
- N6004X-M20UP
Nexus 7000 / 770010
- N7K-F132XP-15
- N7K-F248XP-25
- N7K-F248XP-25E
- N7K-F348XP-25
- N7K-M148GS-11
- N7K-M148GS-11L
- N7K-M348XP-25L
- N77-F248XP-23E
- N77-F348XP-23
- N77-M348XP-23L
Nexus 9100 / 9200 / 930035
- N9K-C9236C
- N9K-C9272Q
- N9K-C9332C
- N9K-C9336C-FX2
- N9K-C9336C-FX2-E
- N9K-C9348GC-FX3
- N9K-C9348GC-FX3PH
- N9K-C9348GC-FXP
- N9K-C9364C
- N9K-C9372PX
- N9K-C9372PX-E
- N9K-C9396PX
- N9K-C92160YC-X
- N9K-C92300YC
- N9K-C92348GC-FX3
- N9K-C92348GC-X
- N9K-C93108TC-EX
- N9K-C93108TC-FX
- N9K-C93108TC-FX-24
- N9K-C93108TC-FX3
- N9K-C93108TC-FX3H
- N9K-C93108TC-FX3P
- N9K-C93180LC-EX
- N9K-C93180YC-EX
- N9K-C93180YC-FX
- N9K-C93180YC-FX-24
- N9K-C93180YC-FX3
- N9K-C93180YC-FX3H
- N9K-C93180YC-FX3S
- N9K-C93240YC-FX2
- N9K-C93360YC-FX2
- N9K-C93480YLC-K1
- N9348Y2C6D-SE1U
- N9348Y12C-SE1
- N9396Y12C-SE1
Nexus 9500 / 980012
- N9K-X9432PQ
- N9K-X9464PX
- N9K-X9464TX2
- N9K-X9564PX
- N9K-X9732C-EX
- N9K-X9732C-FX
- N9K-X9736C-EX
- N9K-X9736C-FX
- N9K-X9736C-FX3
- N9K-X9736Q-FX
- N9K-X96136YC-R
- N9K-X97160YC-EX
Cisco 8000 Routers7
- 84-MPA-2H12Z-M
- 88-LC1-48Y8H-EM
- 8011-4G24Y4H-I
- 8011-12G12X4Y-A
- 8011-12G12X4Y-D
- 8011-32Y8L2H2FH
- 8711-48Z-M
8000 Secure Routers20
- C8130-G2
- C8130-VAI-G2
- C8130-VAP-G2
- C8131-G2
- C8140-G2
- C8151-CVAI-G2
- C8151-CVAP-G2
- C8151-G2
- C8161-G2
- C8231-E-G2
- C8231-G2
- C8235-E-G2
- C8235-G2
- C8355-G2
- C8375-E-G2
- C8455-G2
- C8475-G2
- C8550-G2
- C8570-G2
- C8650-G2
Catalyst 8000 Edge15
- C-NIM-1X
- C-NIM-2T
- C-NIM-4X
- C-NIM-WAN-2X
- C-NIM-WAN-4S
- C8200-1N-4T
- C8200L-1N-4T
- C8300-1N1S-4T2X
- C8300-1N1S-6T
- C8300-2N2S-4T2X
- C8300-2N2S-6T
- C8500-12X
- C8500-12X4QC
- C8500-20X6C
- C8500L-8S4X
ISR 8002
- CISCO892F-K9
- CISCO892FW-K9
ISR 1000 / 11006
- C1100 series with SFP port(s)
- C1100TG
- ISR1100 4P
- ISR1100 8P
- ISR1100-6G
- ISR1100X-6G
ISR 2900 / 39004
- 2921
- 2951
- 3925
- 3945
ISR 400011
- 4221
- 4321
- 4331
- 4351
- 4431
- 4451-X
- 4461
- NIM-1GE-CU-SFP
- NIM-2GE-CU-SFP
- SM-X-4X1G-1X10G
- SM-X-6X1G
Router Switch Modules (HWIC / NME / SM)7
- EHWIC-1GE-SFP-CU
- HWIC-1GE-SFP
- NME-XD-24ES-1S-P
- NME-XD-48ES-2S-P
- SM-D-ES2-48
- SM-D-ES3-48-P
- SM-D-ES3G-48-P
Cisco 3800 / 7200 / 7300 Routers6
- 7300-NSE-150
- Cisco3825
- Cisco3845
- Cisco7201
- CISCO7301
- NPE-G2
Cisco 760013
- 76-ES+T-20G
- 76-ES+T-40G
- 76-ES+XC-20G3C
- 76-ES+XC-20G3CXL
- 76-ES+XC-40G3C
- 76-ES+XC-40G3CXL
- 7600-ES+20G3C
- 7600-ES+20G3CXL
- 7600-ES+40G3C
- 7600-ES+40G3CXL
- RSP720-3C-GE
- RSP720-3CXL-GE
- RSP720-10GE
ASR 900 / 901 / 903 / 92022
- A900-IMA8CS1Z-M
- A900-IMA8S
- A900-IMA8S1Z
- A900-IMA8Z
- A901-4-C-FT-D
- A901-4C-F-D
- A901-6-CZ-FT-A
- A901-6-CZ-FT-D
- A901-6CZ-F-A
- A901-6CZ-F-D
- A901-12-C-FT-D
- A901-12C-F-D
- ASR-920-4SZ
- ASR-920-8S4Z
- ASR-920-8S4Z-PD
- ASR-920-10SZ
- ASR-920-10SZ-PD
- ASR-920-12CZ
- ASR-920-12SZ
- ASR-920-12SZ-IM
- ASR-920-24SZ-IM
- ASR-920-24SZ-M
ASR 100013
- ASR1000-2T+20X1GE
- ASR1001
- ASR1001-HX
- ASR1001-X
- ASR1002
- ASR1002-F
- ASR1002-HX
- ASR1002-X
- EPA-18X1GE
- SPA-2X1GE-V2
- SPA-5X1GE-V2
- SPA-8X1GE-V2
- SPA-10X1GE-V2
ASR 900042
- A9K-2T20GE-B
- A9K-2T20GE-E
- A9K-2T20GE-L
- A9K-4HG-FLEX-X-FC
- A9K-4HG-FLEX-X-SE
- A9K-4T16GE-SE
- A9K-4T16GE-TR
- A9K-24X10GE-1G-FC
- A9K-24X10GE-1G-SE
- A9K-24X10GE-1G-TR
- A9K-40GE-B
- A9K-40GE-E
- A9K-40GE-L
- A9K-40GE-SE
- A9K-40GE-TR
- A9K-48X10GE-1G-FC
- A9K-48X10GE-1G-SE
- A9K-48X10GE-1G-TR
- A9K-MPA-20X1GE
- A9K-MPA-20X1GE-FC
- A9K-MPA-32X1GE
- A9K-MPA-32X1GE-FC
- A9K-RSP440-LT
- A9K-RSP440-SE
- A9K-RSP440-TR
- A9KV-V2-AC
- A9KV-V2-DC-A
- A9KV-V2-DC-E
- A99-4HG-FLEX-X-FC
- A99-4HG-FLEX-X-SE
- A99-48X10GE-1G-FC
- A99-48X10GE-1G-SE
- A99-48X10GE-1G-TR
- ASR-9000V-24-A
- ASR-9000V-AC
- ASR-9000V-DC-A
- ASR-9000V-DC-E
- ASR-9001
- ASR-9901
- ASR-9901-FC
- ASR-9922-RP-SE
- ASR-9922-RP-TR
Mobile Wireless Routers1
- MWR-2941-DC
Carrier Routing System (CRS)1
- 20-1GE-FLEX
12000 Series Routers (GSR)1
- 4GE-SFP-LC
NCS 520 / 540 / 56030
- A900-IMA-8CS1Z
- N520-4G4Z
- N520-20G4Z
- N520-X-4G4Z
- N520-X-20G4Z
- N540-6Z14S-SYS-D
- N540-6Z18G-SYS-A
- N540-6Z18G-SYS-D
- N540-12Z20G-SYS-A
- N540-12Z20G-SYS-D
- N540-24Q2C2DD-SYS
- N540-24Q8L2DD-SYS
- N540-24Z8Q2C-SYS
- N540-28Z4C-SYS-A
- N540-28Z4C-SYS-D
- N540-ACC-SYS
- N540-FH-AGG-SYS
- N540-FH-CSR-SYS
- N540X-4Z14G2Q-A
- N540X-4Z14G2Q-D
- N540X-6Z18G-SYS-A
- N540X-6Z18G-SYS-D
- N540X-8Z16G-SYS-A
- N540X-8Z16G-SYS-D
- N540X-12Z16G-SYS-A
- N540X-12Z16G-SYS-D
- N540X-16Z4G8Q2C-A
- N540X-16Z4G8Q2C-D
- N540X-16Z8Q2C-D
- N540X-ACC-SYS
NCS 42005
- NCS4200-1T8LR-PS
- NCS4200-1T16G-PS
- NCS4200-8T-PS
- NCS4201-SA
- NCS4202-SA
NCS 550026
- NC55-24H12F-SE
- NC55-24X100G-SE
- NC55-32T16Q4H-A
- NC55-36X100G-A-SE
- NC55-MOD-A-S
- NC55-MOD-A-SE-S
- NC55-MPA-12T-S
- NC57-48Q2D-S
- NC57-48Q2D-SE-S
- NCS-55A1-24H
- NCS-55A1-24Q6H-S
- NCS-55A1-24Q6H-SS
- NCS-55A1-48Q6H
- NCS-55A2-MOD-HD-S
- NCS-55A2-MOD-HX-S
- NCS-55A2-MOD-S
- NCS-55A2-MOD-SE-S
- NCS-57C1-48Q6-S
- NCS-57C1-48Q6-SYS
- NCS-57C1-48Q6D-S
- NCS-57C3-MOD-S
- NCS-57C3-MOD-SE-S
- NCS-5001
- NCS-5002
- NCS-5501
- NCS-5501-SE
ASA 5500 / 5500-X3
- ASA 5585-X
- ASA-IC-6GE-SFP-B
- SSM-4GE
Firepower and Secure Firewall78
- CSF6K-XNM-8X10G
- CSF6K-XNM-8X25G
- CSF1210CE-ASA-K9
- CSF1210CE-TD-K9
- CSF1210CP-ASA-K9
- CSF1210CP-TD-K9
- CSF1220CX-ASA-K9
- CSF1220CX-TD-K9
- CSF1230-ASA-K9
- CSF1230-TD-K9
- CSF1240-ASA-K9
- CSF1240-TD-K9
- CSF1250-ASA-K9
- CSF1250-TD-K9
- CSF6160-A-ASA-K9
- CSF6160-A-TD-K9
- CSF6170-A-ASA-K9
- CSF6170-A-TD-K9
- FPR2K-NM-8X1G
- FPR2K-NM-8X10G
- FPR3K-XNM-8X10G
- FPR3K-XNM-8X25G
- FPR4K-NM-8X10G
- FPR4K-XNM-8X10G
- FPR4K-XNM-8X25G
- FPR9K-NM-8X10G
- FPR9K-SM-24
- FPR9K-SM-36
- FPR9K-SM-40
- FPR9K-SM-44
- FPR9K-SM-48
- FPR9K-SM-56
- FPR1120-ASA-K9
- FPR1120-NGFW-K9
- FPR1140-ASA-K9
- FPR1140-NGFW-K9
- FPR1150-ASA-K9
- FPR1150-NGFW-K9
- FPR2110-ASA-K9
- FPR2110-NGFW-K9
- FPR2120-ASA-K9
- FPR2120-NGFW-K9
- FPR2130-ASA-K9
- FPR2130-NGFW-K9
- FPR2140-ASA-K9
- FPR2140-NGFW-K9
- FPR3105-ASA-K9
- FPR3105-NGFW-K9
- FPR3110-ASA-K9
- FPR3110-NGFW-K9
- FPR3120-ASA-K9
- FPR3120-NGFW-K9
- FPR3130-ASA-K9
- FPR3130-NGFW-K9
- FPR3140-ASA-K9
- FPR3140-NGFW-K9
- FPR4110-ASA-K9
- FPR4110-NGFW-K9
- FPR4112-ASA-K9
- FPR4112-NGFW-K9
- FPR4115-ASA-K9
- FPR4115-NGFW-K9
- FPR4120-ASA-K9
- FPR4120-NGFW-K9
- FPR4125-ASA-K9
- FPR4125-NGFW-K9
- FPR4140-ASA-K9
- FPR4140-NGFW-K9
- FPR4145-ASA-K9
- FPR4145-NGFW-K9
- FPR4150-ASA-K9
- FPR4150-NGFW-K9
- FPR4215-ASA-K9
- FPR4215-NGFW-K9
- FPR4225-ASA-K9
- FPR4225-NGFW-K9
- FPR4245-ASA-K9
- FPR4245-NGFW-K9
UCS Fabric Interconnects and Chassis19
- N10-E0440
- N10-E0600
- N10-S6100
- N10-S6200
- N20-I6584
- UCS-FI-6248UP
- UCS-FI-6332-16UP-U
- UCS-FI-6332-U
- UCS-FI-6454
- UCS-FI-6454-U
- UCS-FI-6536
- UCS-FI-64108
- UCS-FI-64108-U
- UCS-FI-E16UP
- UCS-IOM-2208XP
- UCSX-FI-6454-U
- UCSX-FI-6536
- UCSX-FI-6536-U
- UCSX-FI-64108-U
UCS VIC Adapters2
- UCSC-PCIE-ID10GF
- UCSC-PCIE-IQ10GF
uBR Cable Routers2
- ESR-HH-1GE
- uBR7200-NPE-G2
Cloud GPON2
- CGP-OLT-8T
- CGP-OLT-16T
Provider Connectivity Assurance Sensors21
- SKY-GT-A
- SKY-GT-AA
- SKY-GT-H-DD
- SKY-GTS-A
- SKY-GTS-AA
- SKY-GTS-H-DD
- SKY-LTS-DD
- SKY-LTS-H-DD
- SKY-LXS-DD
- SKY-LXS-H-DD
- SKY-LXS-Y-DD
- SKY-LXS-YH-DD
- SKY-MOD1G-DD
- SKY-MOD1G-H-A
- SKY-MOD1G-H-DD
- SKY-MOD1G-HR-A
- SKY-MOD1G-HR-DD
- SKY-MOD10G-A
- SKY-MOD10G-DD
- SKY-MOD10G-H-A
- SKY-MOD10G-H-DD
FluxLight's Full Line 1000Base-SX Fiber Optical Transceivers
- 3Com3CSFP91-FL
- Alcatel-LucentSFP-GIG-SX-FL
- Allied TelesisAT-SPSX-FL
- AristaSFP-1G-SX-A-FL
- AristaSFP-1G-SX-A-FLT
- ArubaJ4858D-FL
- ArubaSFP-SX-FL
- AvagoAFBR-5710-FL
- Brocade-FoundryE1MG-SX-OM-FL
- CienaXCVR-A00G85-FL
- CiscoGLC-SX-MMD-FL
- CiscoGLC-SX-MMD-FLT
- CiscoGLC-SX-MM-E-FL
- CiscoGLC-SX-MM-FL
- CiscoGLC-SX-MM-FLT
- CiscoGLC-SX-MM-RGD-FL
- CiscoSFP-GE-S-FL
- CiscoSFP-GE-S-RGD-FL
- Dell407-BBOR-FL
- D-LinkDEM-311GT-FL
- Extreme10051-FL
- F5F5-UPG-SFP-R-FL
- F5OPT-0010-00-FL
- FinisarFTRJ8519P2BNL-FL
- FortinetFN-TRAN-SX-FL
- HPJ4858C-E-FL
- HPJ4858C-FL
- HUAWEILS-SFP-SX-FL
- IBM81Y1622-FL
- JuniperEX-SFP-1GE-SX-FL
- JuniperEX-SFP-1GE-SX-FLT
- JuniperQFX-SFP-1GE-SX-FL
- JuniperSFP-1GE-SX-FL
- JuniperSFP-1GE-SX-FLT
- JuniperSFP-1GE-SX-IT-FL
- JuniperSRX-SFP-1GE-SX-FL
- JuniperSRX-SFP-1GE-SX-FLT
- LinksysLACGSX-FL
- LinksysMGBSX1-FL
- MerakiMA-SFP-1GB-SX-FL
- MerakiMA-SFP-1GB-SX-FLT
- NetgearAGM731F-FL
- Nokia3HE00027AA-FL
- Palo AltoPAN-SFP-SX-FL
- RuggedComSFP1122-1SX-FL
- Sonicwall01-SSC-9789-FL
Licensing
The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The GLC-SX-MM-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.
U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)
Original Equipment Manufacturer (OEM) names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for cross reference/comparative purposes only.
Warranty
This part is covered by our Limited Lifetime Warranty, a 10-year serviceable lifetime, and our 30-Day Money-Back Guarantee. Read the full warranty and return terms.
Reviews
4.9 · 38 reviews
Linda B.Verified Buyer
Excellent
Order online and went very smooth and received the item in excellent time.
Mark C.Verified Buyer
Totally compatible and economical
We have used these for years with zero failures with no compatibility issues. The pricing can't be beat!
BrianVerified Buyer
GREAT PRODUCT
Another great product we purchase from Fluxlight. Might as well be the same as buying from Cisco but better customer service.
AlexVerified Buyer
GLC-SX-MM Cisco Compatible does what it's supposed.
We purchased this SFP and has worked like a champ. No hickups, solidly built and compatible with our Cisco switches.
JosephVerified Buyer
Only The Best.
Fluxlight is the best in terms of there product and there customer service!!! as will as there fast and free shipping. Thanks to the team of Fluxlight. Joseph
Jane W.Verified Buyer
Good products
These work for us every time. Good products with good pricing.
Joseph S.Verified Buyer
Best All Around.
I have been doing business with Fluxlight for the last 12 years, best customer service great product and great price 😊 what can I say, they are the best.
SandyVerified Buyer
Very pleased with these transceivers!
We use these transceivers in our schools and are very pleased with their performance and reliability. We've had no issues and highly recommend them!
JosephVerified Buyer
Quick Service & Reliable Products
I've been using FluxLight for several years for my fiber-related needs. Their products are every bit as reliable as "name brand" devices costing many times as much. Their customer service is way above average as well providing an always accurate assessment of my needs and fast shipping at fair prices. More than once they've gotten me out of a tight spot. I enthusiastically recommend them.
Showing 10 of 38 reviews
Ready to Build Your Network?
Get compatible transceivers and cables shipped fast, with expert support when you need it.
