HP Compatible
JD094B-FL HP JD094B Compatible 10GBase-LR SFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
- Guaranteed compatible with HP
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 10G
- Form Factor
- SFP+
- Interface Type
- 10GBASE-LR
- Standard/Protocol
- IEEE 802.3ae 10GBASE-LR
- TX Wavelength
- 1310nm
- RX Wavelength
- 1260-1580nm
- Cable Type
- SMF (G.652)
- Reach
- 10km (SMF)
- DDM
- Supported
- Connector Type
- Duplex LC (UPC)
- Power Consumption
- < 1.0 W
- Operating Temperature
- 0°C to +70°C (COM)
Overview
FluxLight's JD094B-FL is a HP® compatible 10GBase SFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to HP® original transceivers and are 100% compatible with other OEM and third party transceivers. The JD094B-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Applications
- 10 Gigabit Ethernet over single-mode fiber
- Switch and router uplinks, campus backbone and inter-building links up to 10 km
- 10G Fibre Channel / Storage Area Network (SAN)
- 10G SONET/SDH (OC-192 / STM-64)
- OTN transport (OTU1e / OTU2e)
Features
- Hot-pluggable SFP+ footprint with duplex LC receptacle
- Supports 1.25 to 11.3 Gbps line rates; compliant with IEEE 802.3ae 10GBASE-LR
- 1310 nm DFB laser transmitter and PIN photodiode receiver
- Up to 10 km over G.652 single-mode fiber
- Average launch power −8.2 to +0.5 dBm; receiver sensitivity better than −14.4 dBm
- Real-time Digital Diagnostic Monitoring (DDM/DOM) via 2-wire serial interface per SFF-8472
- Single +3.3V power supply with ultra-low power dissipation (< 1.0 W)
- Operating case temperature: 0°C to +70°C (COM)
- SFP+ MSA (SFF-8431) compliant, RoHS-6 compliant, and Class 1 laser eye safety certified (IEC/EN 60825-1)
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | TOP | 0 | 70 | °C |
| Power Supply Voltage | VCC | -0.3 | 3.6 | V |
| Relative Humidity (non-condensation) | RH | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Power Consumption | 1 | W | |||
| Data Rate | DR | 10.3125 | Gbps | ||
| Link Distance with SMF | D | 10 | km |
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Transmitter | ||||||
| Support data rate | 1.25 | 11.3 | Gb/s | |||
| Center Wavelength | 1260 | 1310 | 1355 | nm | ||
| Spectral Width (-20dB) | 1 | nm | ||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Average Optical Output Power | Po | -8.2 | 0.5 | dBm | ||
| Optical Modulation Amplitude | POMA | -5.2 | dBm | |||
| Extinction Ratio | Er | 3.5 | dB | |||
| Transmitter and dispersion penalty | TDP | 3.2 | dB | |||
| Output Power with Transmitter Disabled | Poff | -30 | dBm | |||
| Transmitter Enable Voltage | VEN | -0.3 | 0.8 | V | ||
| Transmitter Disable Voltage | VD | 2.0 | Vcc+0.3 | V | ||
| Differential Data Input Swing | VINpp | 100 | 1000 | mV | ||
| Rise/fall time (20%-80%) | Tr/Tf | 50 | ps | |||
| RIN12OMA | RIN12 | -128 | dB/Hz | |||
| Optical return loss tolerance | -12 | dB | ||||
| Output Eye Diagram | Compliant with IEEE 802.3 | 1 | ||||
| Receiver | ||||||
| Support data rate | 1.25 | 10.3125 | 11.3 | Gb/s | ||
| Operate Wavelength | 1260 | 1580 | nm | |||
| Receiver sensitivity (BER of 1E-12) @10.3125Gb/s | Sen1 | -14.4 | dBm | 2 | ||
| Saturation (BER of 1E-12) | Psat | 0.5 | dBm | 2 | ||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS De-Assert | LOSD | -16 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 5.0 | dB | ||
| Differential Data Output Swing | VOUTPP | 300 | 850 | mV | ||
| LOS Low Voltage | VLout | 0.4 | V | |||
| LOS High Voltage | VHout | 2.0 | V | |||
Notes:
- At least 1000 waveforms acquired, with minimum 5% margin against the IEEE 802.3 mask.
- Tested at 10.3125Gb/s, PRBS 2³¹−1, BER of 1×10⁻¹², NRZ, including back-to-back.

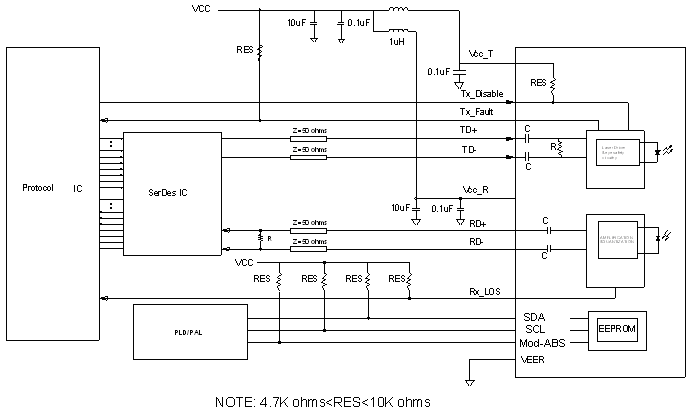

Recommended Interface Circuit
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

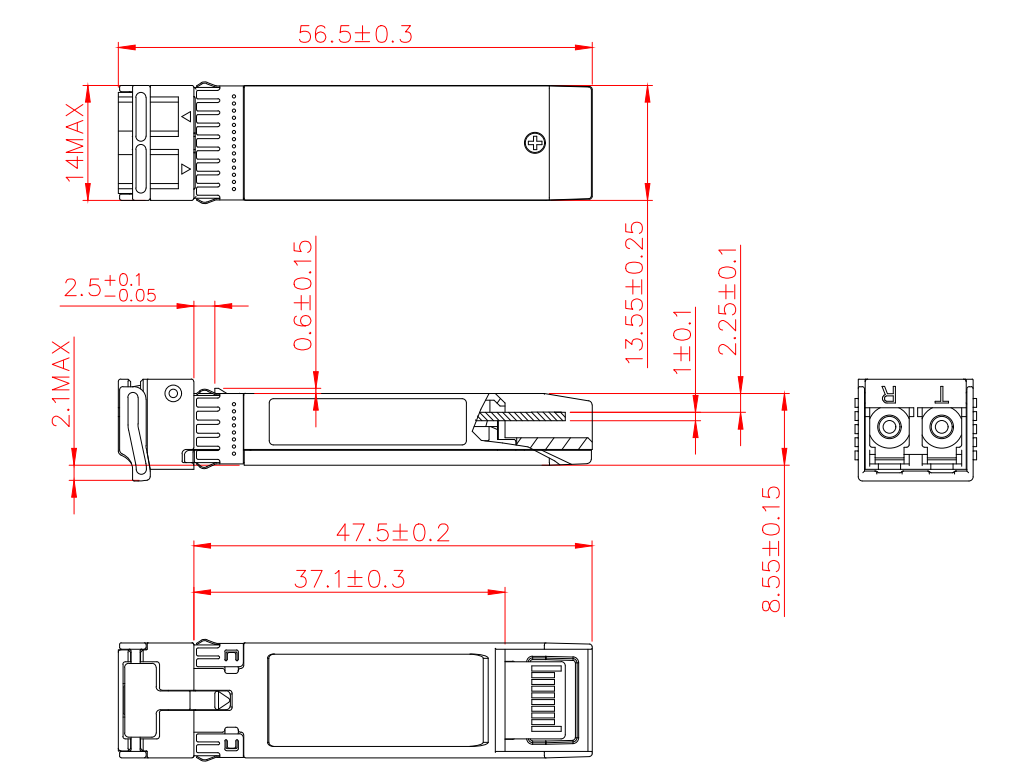

Mechanical Dimensions
Units: mm
Pin Assignment and Description
| Pin | Signal Name | Description | Plug Seq. |
|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 |
| 2 | TX FAULT | Transmitter Fault Indication | 3 |
| 3 | TX DISABLE | Transmitter Disable | 3 |
| 4 | SDA | SDA Serial Data Signal | 3 |
| 5 | SCL | SCL Serial Clock Signal | 3 |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 |
| 7 | RS0 | Not Connected | 3 |
| 8 | LOS | Loss of Signal | 3 |
| 9 | RS1 | Not Connected | 3 |
| 10 | VeeR | Receiver ground | 1 |
| 11 | VeeR | Receiver ground | 1 |
| 12 | RD- | Inv. Received Data Out | 3 |
| 13 | RD+ | Received Data Out | 3 |
| 14 | VeeR | Receiver ground | 1 |
| 15 | VCCR | Receiver Power Supply | 2 |
| 16 | VCCT | Transmitter Power Supply | 2 |
| 17 | VeeT | Transmitter Ground | 1 |
| 18 | TD+ | Transmit Data In | 3 |
| 19 | TD- | Inv. Transmit Data In | 3 |
| 20 | VeeT | Transmitter Ground | 1 |
ESD
This transceiver is specified as ESD threshold 1kV for high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
12900 Series6
- JG624A48-port 10GbE SFP+ EA Module · R1005P07 or later
- JG626A48-port 1/10GbE SFP+ EC Module · R1005P07 or later
- JG855A48-port GbE SFP EB Module · R1005P07 or later
- JG888A48-port 1/10GbE SFP+ FC Module · R1109 or later
- JG888B48-port 1/10GbE SFP+ FX Module · R1109 or later
- JH249A48-port 1/10GbE SFP+ FE Module · R1135 or later
12900E Series5
- JH360A48-port 1/10GbE SFP+ 2-port 100GbE QSFP28 HB Module · R2606 or later
- JH953A24p 10G/2p 40G HB 59xx Slot Module · R2706P01 or later
- JH954A24p 10G/4p 100G HD 59xx Slot Module · R2710 or later
- JL846A48-port 10GbE SFP+ Type X Module · E7624P03 or later
- JQ061A48-port 10GbE SFP+ HF Module · R2706P01 or later
11900 Series2
- JG611A32-port 10GbE SFP+ SF Module · B7148 or later
- JG612A48-port 10GbE SFP+ SF Module · B7148 or later
10500 Series24
- JC628A16-port 10-GbE SFP+ SC Module · B7148 or later
- JC629A8-port 10-GbE SFP+ EB Module · B7148 or later
- JC630A8-port 10-GbE SFP+ EA Module · B7148 or later
- JC631A8-port 10-GbE SFP+ SE Module · B7148 or later
- JC755A32-port 10GbE SFP+ SF Module · B7148 or later
- JC756A48-port 10GbE SFP+ SF Module · B7148 or later
- JG344A32-port 10GbE SFP+ SF TAA-compliant Module · B7148 or later
- JG345A48-port 10GbE SFP+ SF TAA-compliant Module · B7148 or later
- JG387A8-port 10GbE SFP+ EB TAA-compliant Module · B7148 or later
- JG388A8-port 10GbE SFP+ EA TAA-compliant Module · B7148 or later
- JG389A8-port 10GbE SFP+ SE TAA-compliant Module · B7148 or later
- JH191A44-port GbE SFP/4-port 10GbE SFP+ SE Module · B7148 or later
- JH191A44-Port GbE SFP / 4-Port 10GbE SFP+ SE Module · R7150 or later
- JH193A16-port 1/10GbE SFP+ SF Module · B7148 or later
- JH193A16-Port GbE/10GbE SFP+ SF Module · R7150 or later
- JH194A24-port 1/10GbE SFP+ EC Module · B7148 or later
- JH197A48-port 1/10GbE SFP+ SG Module · B7148 or later
- JH197A48-Port GbE/10GbE SFP+ SG Module · R7150 or later
- JH199A44-Port GbE SFP/4-Port 10GbE SFP+ SE TAA-compliant Module · B7148 or later
- JH201A16-Port GbE/10GbE SFP+ SF TAA-compliant Module · B7148 or later
- JH202A24-Port GbE/10GbE SFP+ EC TAA-compliant Module · B7148 or later
- JH205A48-Port GbE/10GbE SFP+ SG TAA-compliant Module · B7148 or later
- JH432A32-port 10GbE SFP/SFP+/4-port 40GbE QSFP+ M2SG Module · E7522; R7523P01
- JH433A48-port 10GbE SFP/SFP+ with MACsec M2SG Module · E7522; R7523P01
7900 Series2
- JG845A24-port 1/10GbE SFP+ FX Module · R2117 or later
- JH002A2-port 100GbE CXP/6-port 40GbE QSFP+/4-port 10GbE SFP+ FX Module · R2138P01 or later
7500 Series19
- JC723A8-port 10GbE SFP+ SC TAA-compliant Module · B7148 or later
- JF290A8-port 10G SFP+ SC Module · B7148 or later
- JH209A2.4Tbps Fabric with 8-port 1/10GbE SFP+ and 2-port 40GbE QSFP+ MPU · E7162P01 or later
- JH209A2.4Tbps Fabric w/ 8-port GbE/10GbE and 2-port 40GbE User Ports Main Processing Unit · R7168 or later
- JH210A44-port SFP/4-port SFP+ SE Module · B7148 or later
- JH210A44-port GbE / 4-port 10GbE SE Module · R7150 or later
- JH211A24-port SFP/4-port SFP+ SE Module · B7148 or later
- JH211A24-port GbE / 4-port 10GbE SE Module · R7150 or later
- JH214A16-port 1/10GbE SFP+ SF Module · B7148 or later
- JH214A16-port GbE/10GbE SF Module · R7150 or later
- JH217A2.4Tbps Fabric w/ 8-port GbE/10GbE and 2-port 40GbE TAA-compliant Main Processing Unit · E7162P01 or later
- JH217A2.4Tbps Fabric w/ 8-port GbE/10GbE and 2-port 40GbE TAA-compliant Main Processing Unit · R7168 or later
- JH218A44-port GbE / 4-port 10GbE SE TAA-compliant Module · B7148 or later
- JH219A24-port GbE / 4-port 10GbE SE TAA-compliant Module · B7148 or later
- JH222A16-port GbE/10GbE SF TAA-compliant Module · B7148 or later
- JH309A12-port 1/10GbE SFP+ EC Module · E7162P01 or later
- JH430A48-port 10GbE SFP/SFP+ M2RSG Module · E7522; R7523P01
- JH431A44-port GbE SFP/4-port 10GbE SFP/SFP+ with MACsec SE Module · R7523P01 or later
- JH431A44-port GbE SFP/4-port 10GbE SFP/SFP+ with MACsec SE Module · E7522 or later
7500X Series3
- R8N54A40 port 1G SFP 8 port 10G SFP+ FD Module · A7624P51 or later
- R8N56A24 port 10G SFP+ 2 40G/1 100G QSFP28 FD Module · A7624P51 or later
- R8R43A48 port 10G SFP+ SG Module · A7624P51 or later
6127XLG Series2
- 787635-B21Ethernet Blade Switch · R2418P01 or later
- 787635-B22Ethernet Blade Switch with TAA · R2418P01 or later
6125XLG Series2
- 711307-B21Blade Switch · R2418P01 or later
- 737230-B21Blade Switch with TAA · R2418P01 or later
5980 Series1
- JQ026A48SFP+ 6QSFP28 Switch · R2708 or later
AOS-S switches1
- Networking Comware 5960 32 Port 400G QSFP-DD Data Center SwitchR9127 or later
5950 Series4
- JH321A32QSFP28 Switch · R6123 or later
- JH322A32QSFP28 TAA-compliant Switch · R6123 or later
- JH402A48SFP28 8QSFP28 Switch · R6123 or later
- JH450A24-port SFP28 and 2-port QSFP28 Module · R6123 or later
5945 Series1
- JQ074A48SFP28 8QSFP28 Switch · R6508 or later
5940 Series3
- JH390A48SFP+ 6QSFP28 Switch · R2509P02 or later
- JH392A48SFP+ 6QSFP28 TAA-compliant Switch · R2509P02 or later
- JH395A48SFP+ 6QSFP+ Switch · R2509P02 or later
5930 Series3
- JH180A24-port SFP+ and 2-port QSFP+ Module · R2418P01 or later
- JH181A24-port SFP+ and 2-port QSFP+ with MACsec Module · R2418P01 or later
- JH184A24-port Converged Port and 2-port QSFP+ Module · R2418P01 or later
5920AF Series2
- JG296A24XG Switch · R2432P05 or later
- JG555A24XG TAA-compliant Switch · R2432P05 or later
5900AF Series4
- JC772A48XG 4QSFP+ Switch · R2418P01 or later
- JG510A48G 4XG 2QSFP+ Switch · R2418P01 or later
- JG554A48XG 4QSFP+ TAA-compliant Switch · R2418P01 or later
- JH038A48G 4XG 2QSFP+ TAA-compliant Switch · R2418P01 or later
5900CP Series2
- JG838A48XG 4QSFP+ Switch · R2418P01 or later
- JH036A48XG 4QSFP+ TAA-compliant Switch · R2418P01 or later
5830AF Series2
- JC691A-48G Switch w/1 Interface Slot · R1118P09 or later
- JC694A-96G Switch · R1118P09 or later
5710 Series2
- JL585A48SFP+ 6QSFP+ or 2QSFP28 Switch · R2612 or later
- JL587A24SFP+ 6QSFP+ or 2QSFP28 Switch · R2612P01 or later
5700 Series6
- JG894A48G 4XG 2QSFP+ Switch · R2418P01 or later
- JG895A48G 4XG 2QSFP+ TAA-compliant Switch · R2418P01 or later
- JG896A40XG 2QSFP+ Switch · R2418P01 or later
- JG897A40XG 2QSFP+ TAA-compliant Switch · R2418P01 or later
- JG898A32XGT 8XG 2QSFP+ Switch · R2418P01 or later
- JG899A32XGT 8XG 2QSFP+ TAA-compliant Switch · R2418P01 or later
5520HI Series5
- R8M25A24G 4SFP+ 24 10/100/1000BASE-T 4 10G/1G BASE-X SFP+ 1 Exp 2 PS Slot Switch · R6525 or later
- R8M26A48G 10/100/1000BASE-T 4 10G/1G BASE-X SFP+ 1 Exp 2 Fan Trays 2 PS Slot Switch · R6525 or later
- R8M27A24 SFP 4 10G/1G BASE-X SFP+ 1 Exp slot 2 Fan Tray 2 PS Switch · R6525 or later
- R8M28A24 10/100/1000BASE-T 4 10G/1G BASE-X SFP+ 1 Exp 2 Fan Tray 2 PS Switch · R6525 or later
- R8M29A48 10/100/1000BASE-T 4 10G/1G BASE-X SFP+ 1 Exp 2 Fan Tray 2 PS Switch · R6525 or later
5140 Series6
- JL823A24G PoE+ 2SFP+ 2XGT EI Switch · R6525 or later
- JL824A48G PoE+ 4SFP+ EI Switch · R6525 or later
- JL826A24G SFP w/8G Combo 4SFP+ EI Switch · R6525 or later
- JL827A24G PoE+ 4SFP+ EI Switch · R6525 or later
- JL828A24G 4SFP+ EI Switch · R6525 or later
- JL829A48G 4SFP+ EI Switch · R6525 or later
5130 Series2
- JM051A48G 4SFP+ XI Switch · R6511 or later
- JM052A48G PoE+ 4SFP+ XI Switch · R6511 or later
FluxLight's Full Line of 10GBase-LR Fiber Optical Transceivers
- Alcatel-LucentiSFP-10G-LR-FL
- Allied TelesisAT-SP10LR-FL
- AristaSFP-10G-LR-A-FL
- AristaSFP-10G-LR-A-FLT
- ArubaJ9151D-FL
- ArubaJ9151E-FL
- AvagoAFBR-707SDZ-FL
- Brocade-Foundry10G-SFPP-LR-FL
- CienaXCVR-S10V31-FL
- CiscoSFP-10G-LR-FL
- CiscoSFP-10G-LR-FLT
- CiscoSFP-10G-LR-S-FL
- CiscoSFP-10G-LR-X-FL
- Dell407-BBOP-FL
- Dell407-BBZV-FL
- D-LinkDEM-432XT-FL
- Extreme10302-FL
- F5F5-UPG-SFP+-LR-R-FL
- F5OPT-0017-00-FL
- FinisarFTLX1475D3BCL-FL
- FinisarFTLX1475D3BCV-FL
- FinisarFTLX1475D3BNL-FL
- FinisarFTLX1475D3BNV-FL
- FinisarFTLX1475D3BTL-FL
- FortinetFN-TRAN-SFP+LR-FL
- HPJ9151A-FL
- HPJD094B-FL
- HUAWEI0231A0A8-FL
- IBM90Y9412-FL
- IntelE10GSFPLR-FL
- JuniperEX-SFP-10GE-LR-FL
- JuniperEX-SFP-10GE-LR-FLT
- JuniperQFX-SFP-10GE-LR-FL
- JuniperQFX-SFP-10GE-LR-FLT
- JuniperSFPP-10GE-LR-FL
- JuniperSFPP-10GE-LR-FLT
- JuniperSFPP-10G-LR-C-FL
- JuniperSFPP-10G-LR-C-FLT
- JuniperSRX-SFP-10GE-LR-FL
- JuniperSRX-SFP-10GE-LR-FLT
- JuniperSRX-SFPP-10G-LR-ET-FL
- LinksysLACXGLR-FL
- MerakiMA-SFP-10GB-LR-FL
- MerakiMA-SFP-10GB-LR-FLT
- NetgearAXM762-FL
- Nokia3HE04823AA-FL
- Nokia3HE04823AA-IND-FL
- Nokia3HE09327AA-FL
- Nokia3HE09327AA-IND-FL
- Palo AltoPAN-SFP-PLUS-LR-FL
- RuggedComSFP2133-1LR10-FL
- Sonicwall01-SSC-9786-FL
Licensing
The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The JD094B-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.
U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)
Original Equipment Manufacturer (OEM) names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for cross reference/comparative purposes only.
Warranty
This part is covered by our Limited Lifetime Warranty, a 10-year serviceable lifetime, and our 30-Day Money-Back Guarantee. Read the full warranty and return terms.
Ready to Build Your Network?
Get compatible transceivers and cables shipped fast, with expert support when you need it.
