Cisco Compatible
QSFP-100G-LR4-S-20-FL Cisco QSFP-100G-LR4-S-20 Compatible 100GBase-LR4 QSFP28 1310nm 20km DOM Duplex LC SMF Optical Transceiver Module
- Guaranteed compatible with Cisco
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Form Factor
- QSFP28
- Rate Category
- 100GBase
- TX Wavelength
- 1310nm
- Interface Type
- LR4
- Reach
- 20km

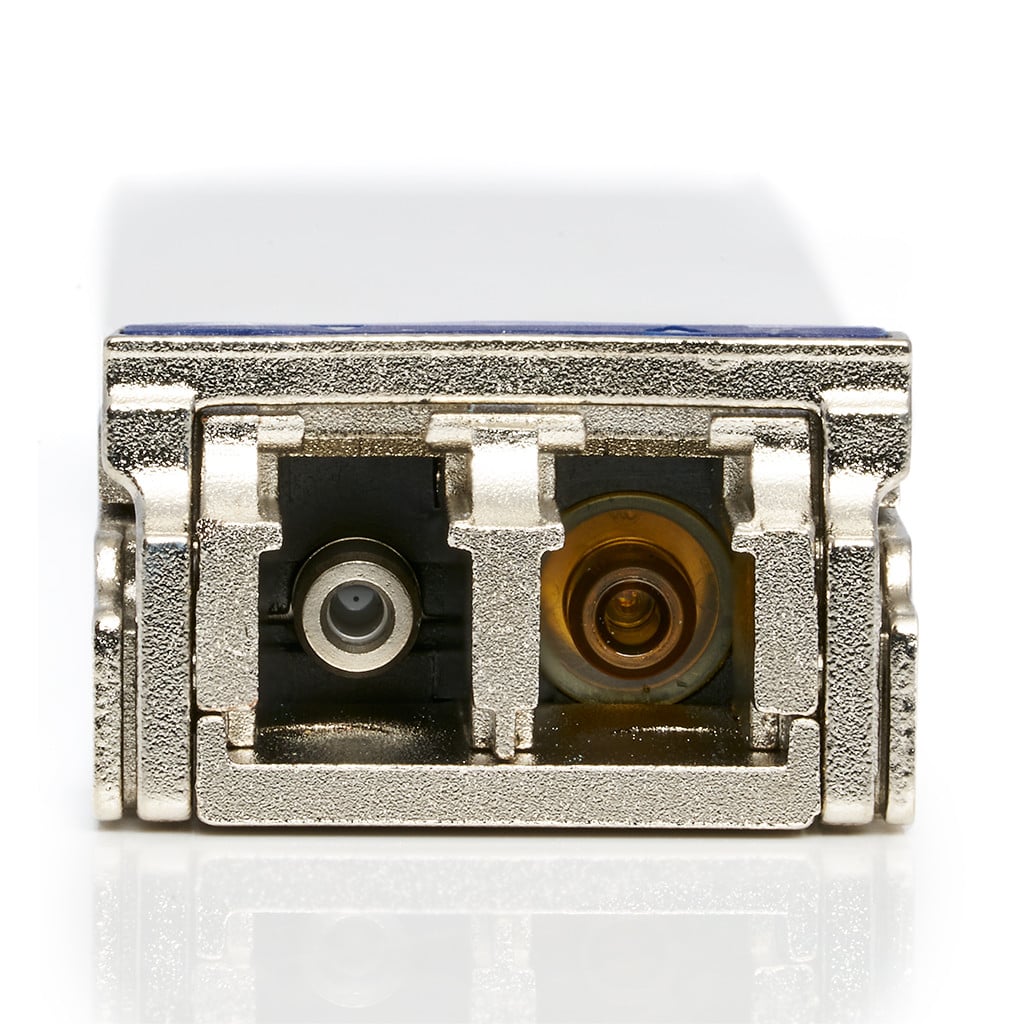

- Connector
- Dual-LC
- Cable Type
- SMF
- DDM
- Yes
- Temperature
- (COM) 0°C to +70 °C
- TAA
- No
Overview
The QSFP-100G-LR4-S-20-FL is a 103/112 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and OUT-4. The module converts 4 input channels of 25/28 Gbps electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 103/112 Gbps optical transmission. Reversely on the receiver side, the module de-multiplexes a 103/112 Gbps optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100G applications up to 20km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 and OUT-4l1-9D1F requirements. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA).
FluxLight's Full Line of 100GBase-LR4s
- AristaQSFP-100G-LR4-20-A-FL
- CiscoQSFP-100G-LR4-S-20-FL
- Dell407-BCDH-20-FL
- Extreme10403-20-FL
- FortinetFN-TRAN-QSFP28-LR4-20-FL
- JuniperJNP-QSFP-100G-LR4-20-FL
- JuniperQSFP-100GBASE-LR4-20-FL
- Palo AltoPAN-QSFP28-100GBASE-LR4-20-FL
Licensing
The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The QSFP-100G-LR4-S-20-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.
U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)
Original Equipment Manufacturer (OEM) names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for cross reference/comparative purposes only.
Warranty
This part is covered by our Limited Lifetime Warranty, a 10-year serviceable lifetime, and our 30-Day Money-Back Guarantee. Read the full warranty and return terms.
